Home >> Lincoln >> 2003 >> Aviator AWD >> Repair and Diagnosis >> Accessories & Equipment >> Accessories Control Systems >> Component Testing >> Component Testing >> Multifunction Switch, Lamp Portion

Multifunction Switch, Lamp Portion

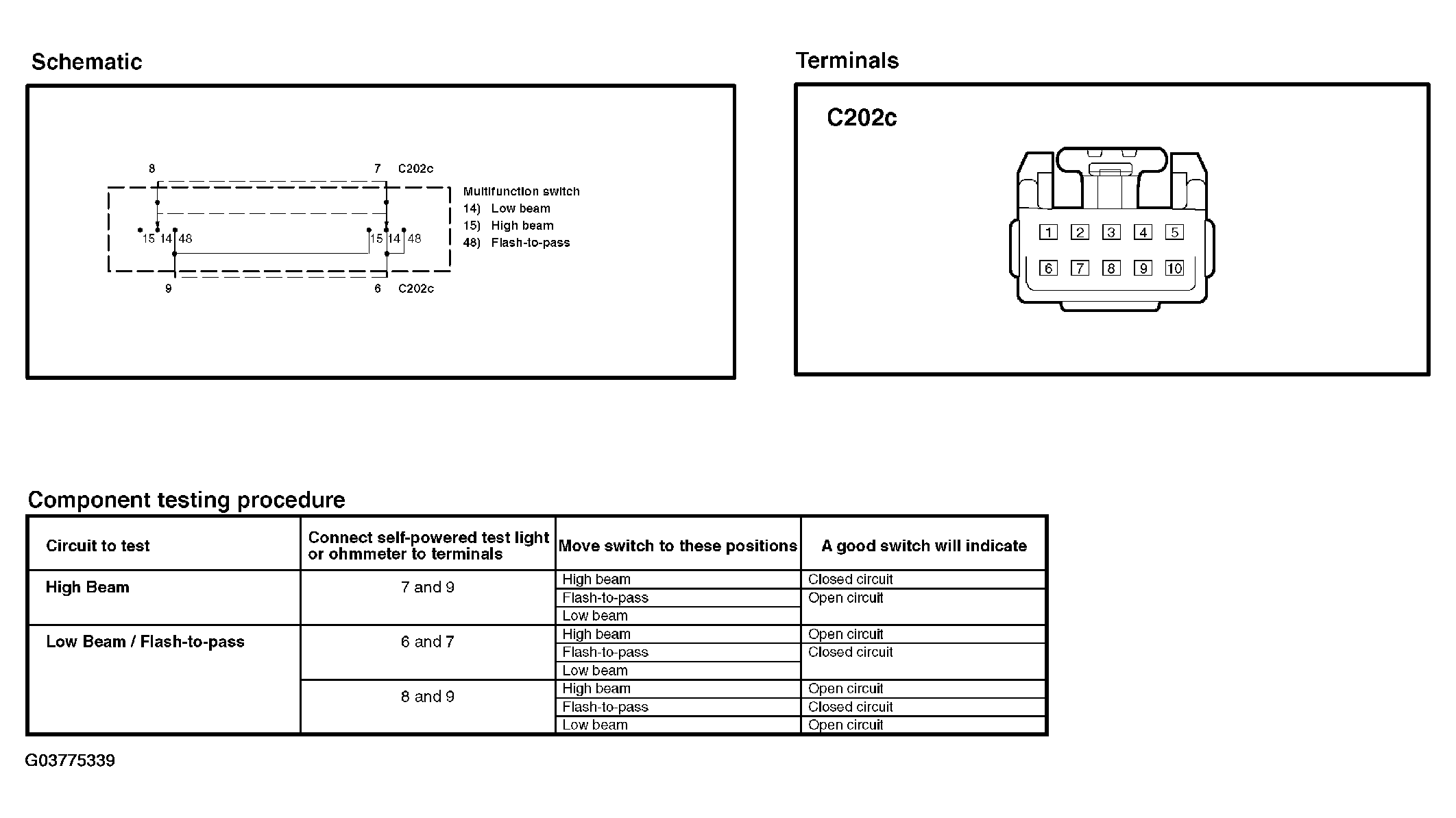

Fig 1: Testing Multifunction Switch - Lamp Portion

G03775339

Courtesy of FORD MOTOR CO.
