Pinpoint Test F: No Communication With Module - Rear Air Suspension Control Module

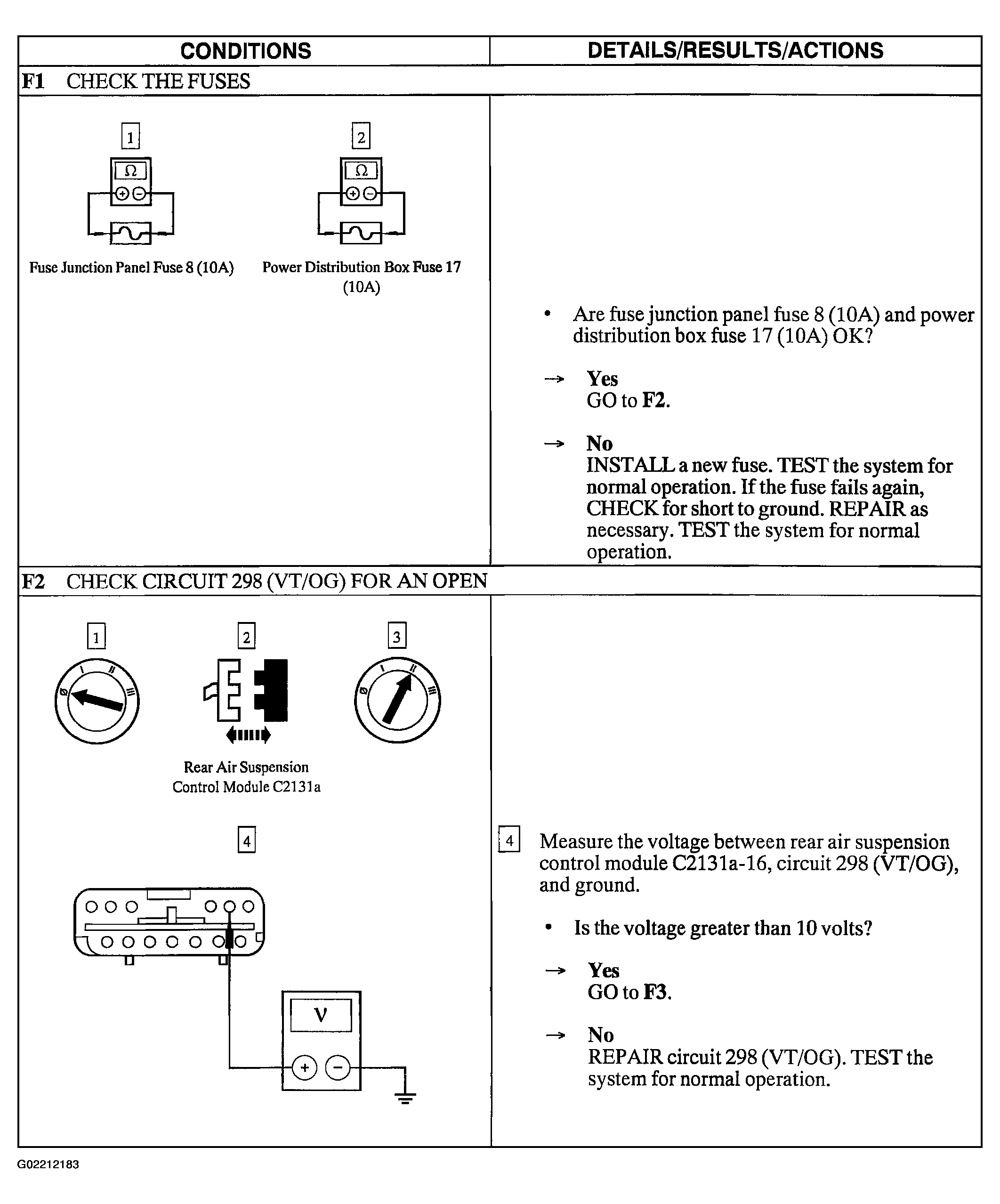

Fig 1: Pinpoint Test F: No Communication With Module - Rear Air Suspension Control Module Chart (F1-F2)
G02212183Courtesy of FORD MOTOR CO.

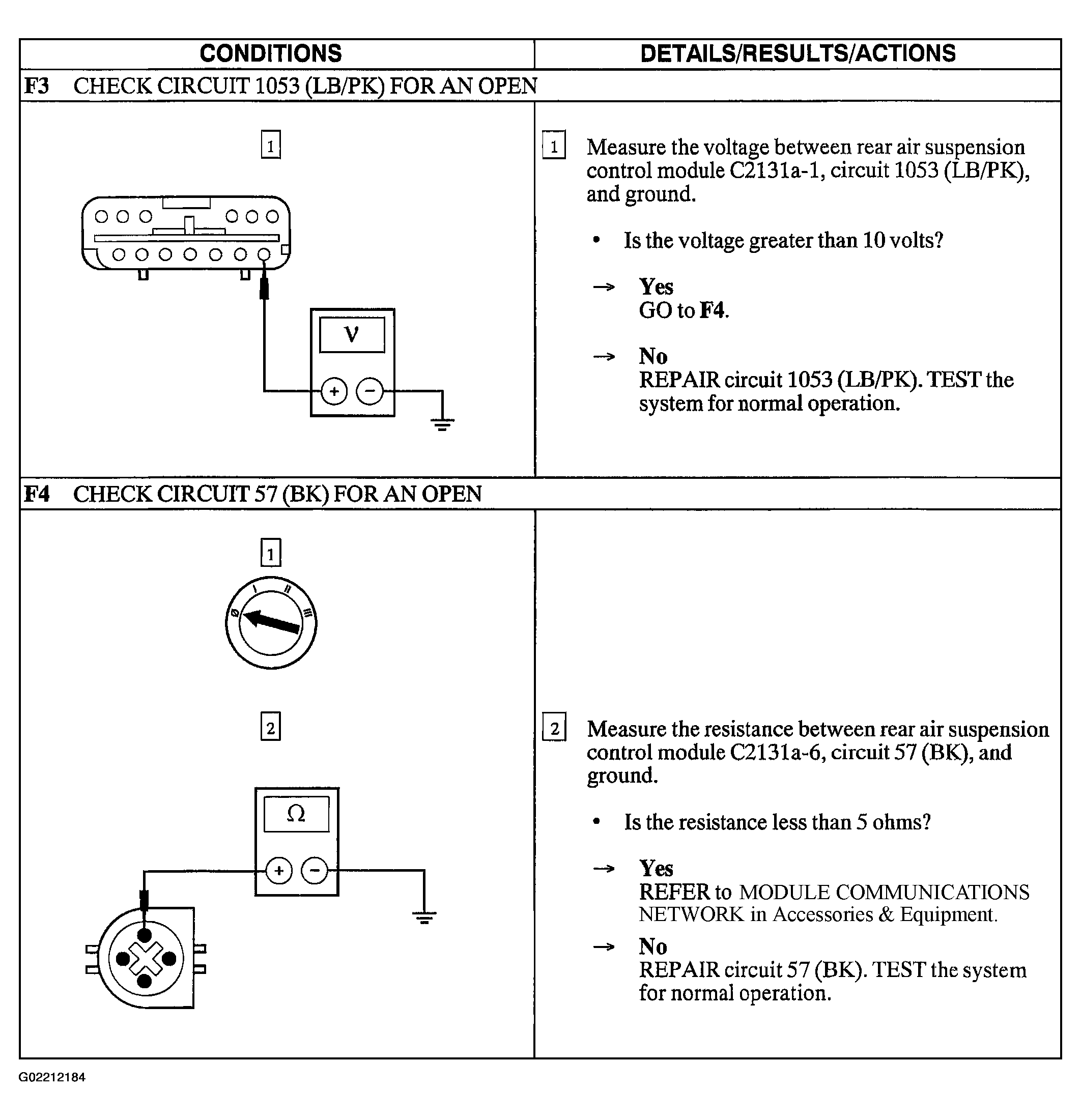

Fig 2: Pinpoint Test F: No Communication With Module - Rear Air Suspension Control Module Chart (F3-F4)
G02212184Courtesy of FORD MOTOR CO.
