Sensor-In-Car Temperature: Removal

  1. Use the special tool to remove the radio chassis.

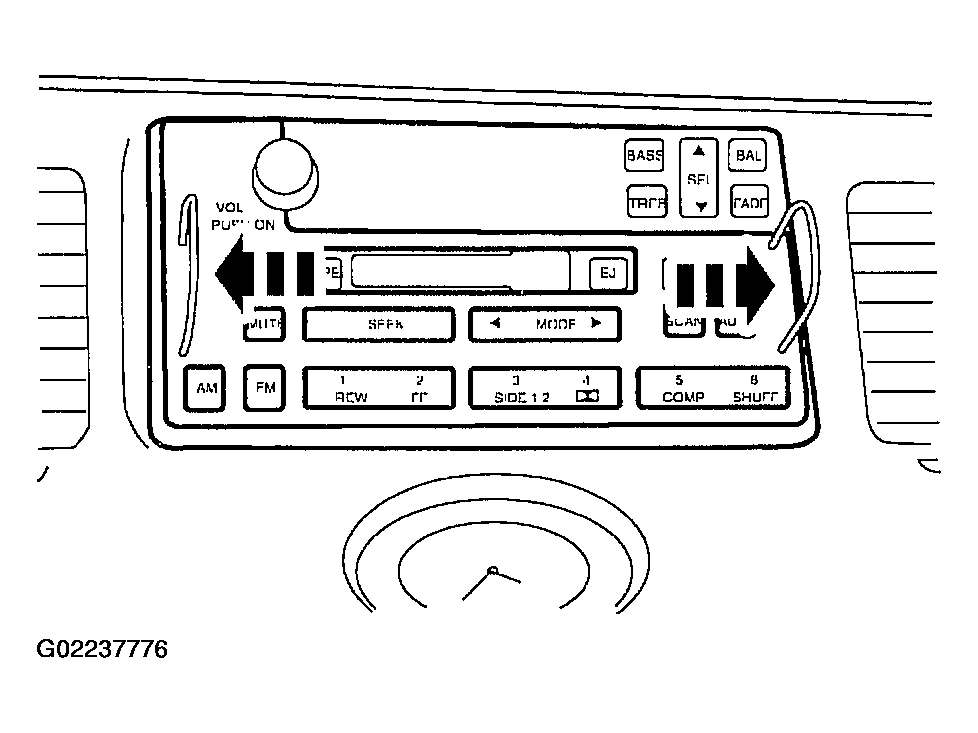

    Fig 1: Removing Radio Chassis
    G02237776Courtesy of FORD MOTOR CO.
  2. Disconnect the antenna lead and the wire harness connectors.

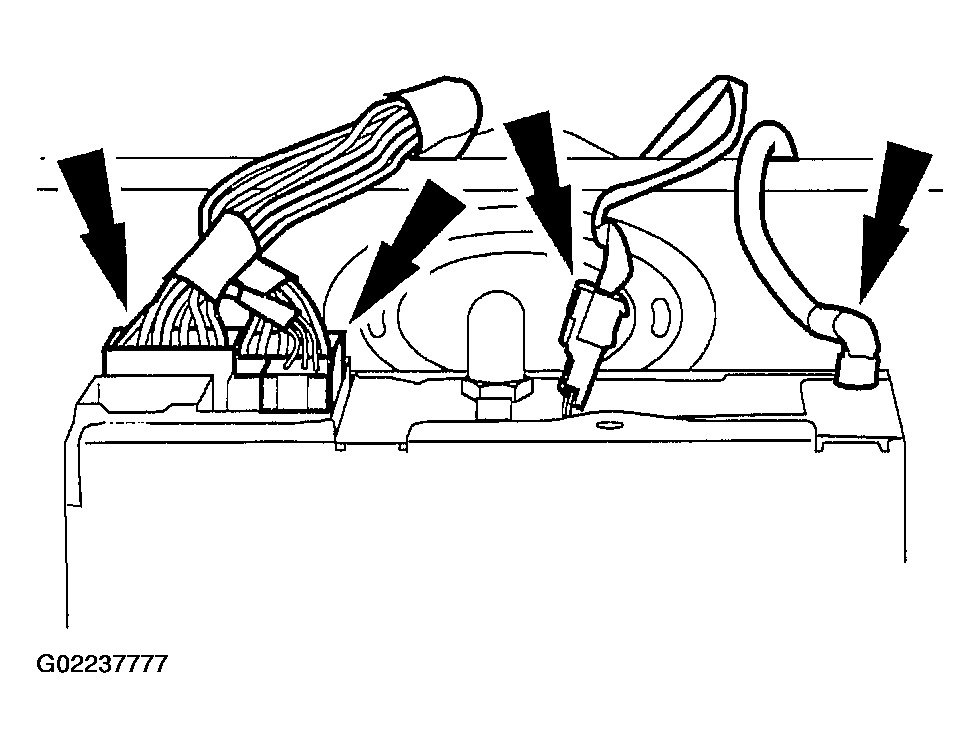

    Fig 2: Disconnecting Antenna Lead And Wire Harness Connectors
    G02237777Courtesy of FORD MOTOR CO.
  3. Remove the screws from the radio chassis opening.
    Fig 3: Removing Screws From Radio Chassis Opening
    G02237778Courtesy of FORD MOTOR CO.
  4. Remove the screws and the cluster opening finish panel.
    Fig 4: Removing Screws And Cluster Opening Finish Panel
    G02237779Courtesy of FORD MOTOR CO.
  5. Disconnect the headlight and dimmer switch wire harness connectors.

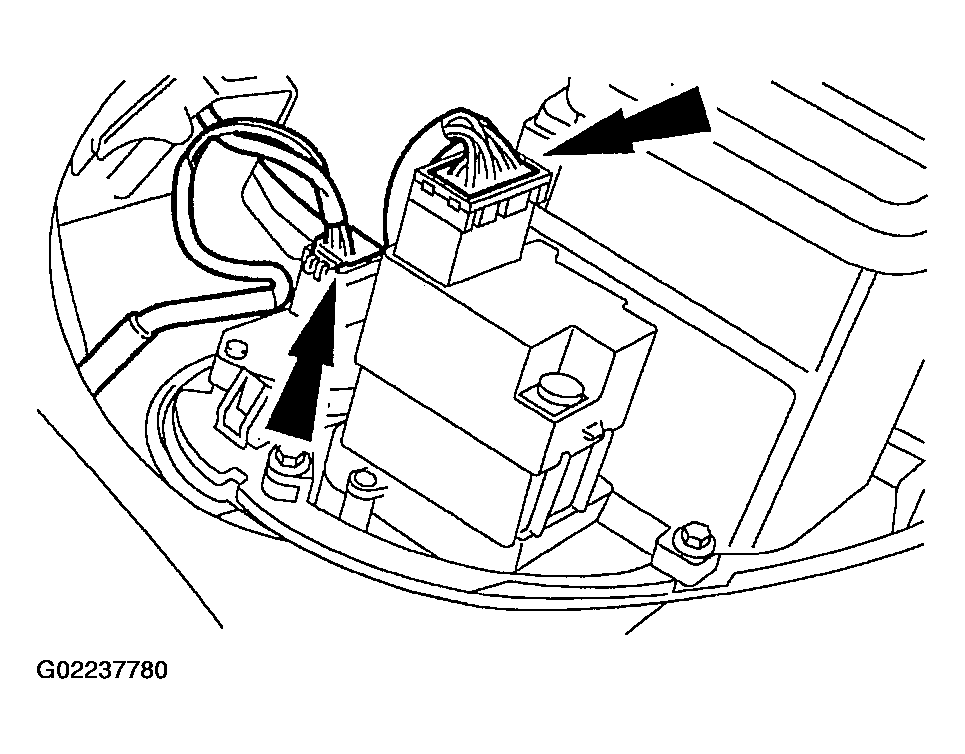

    Fig 5: Disconnecting Headlight And Dimmer Switch Wire Harness Connectors
    G02237780Courtesy of FORD MOTOR CO.
  6. Disconnect the clock wire harness connector.
    Fig 6: Disconnecting Clock Wire Harness Connector
    G02237781Courtesy of FORD MOTOR CO.
  7. Remove the screw.

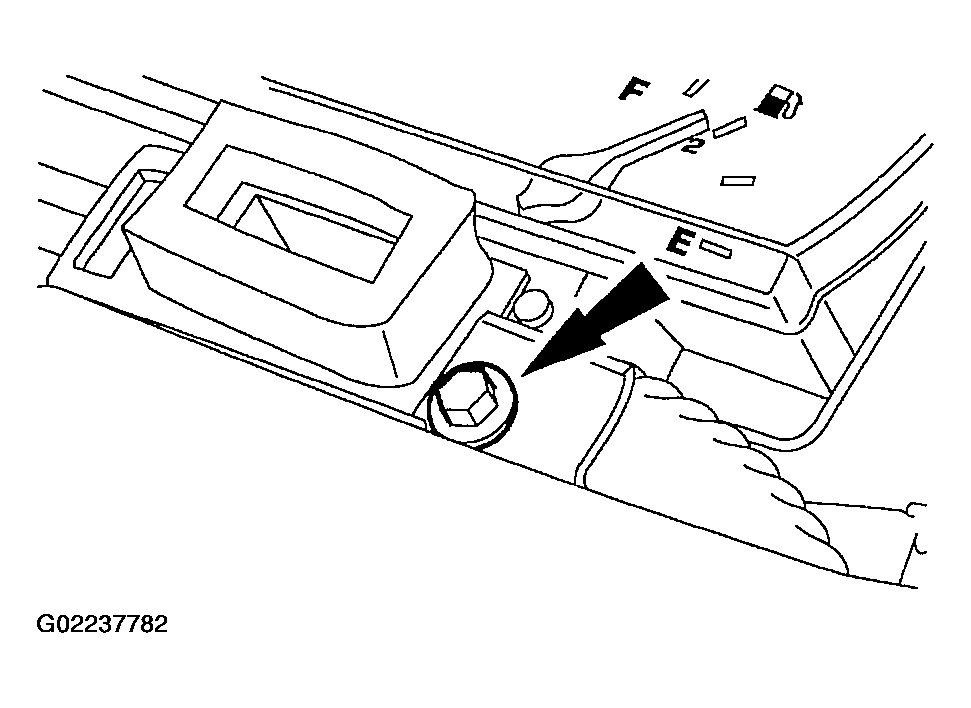

    Fig 7: Removing Sensor Screw
    G02237782Courtesy of FORD MOTOR CO.
  8. Disconnect the wire harness connector and remove the sensor from the hose.

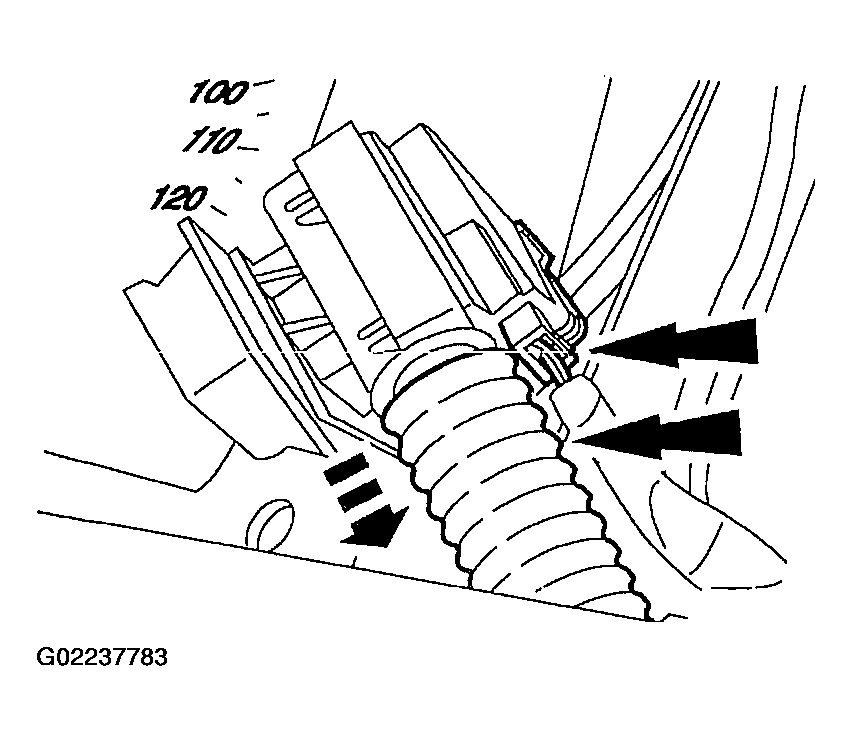

    Fig 8: Disconnecting Wire Harness Connector And Remove Sensor From Hose
    G02237783Courtesy of FORD MOTOR CO.
