Pinpoint Test H: DTC B2425 RKE Out Of Synchronization

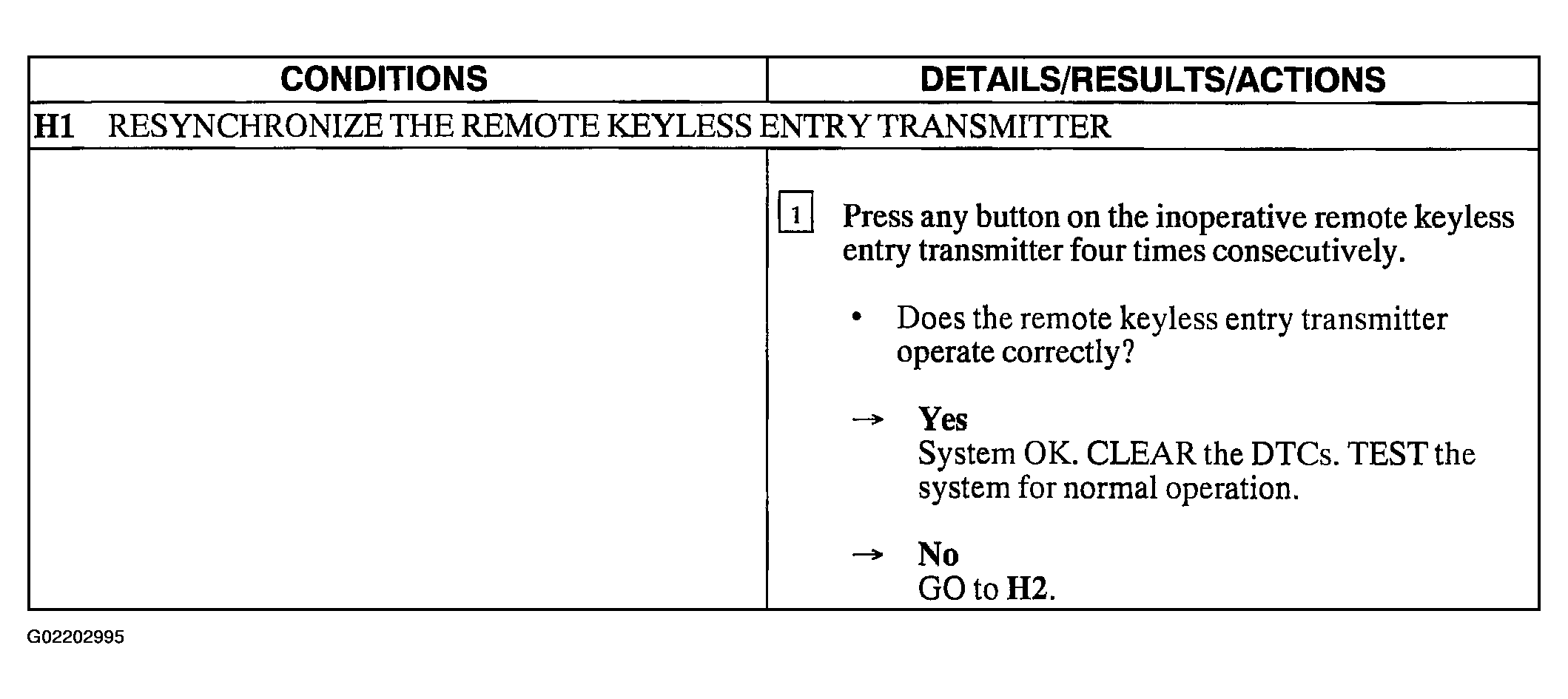

Fig 1: Pinpoint Test H: DTC B2425 RKE Out Of Synchronization (H1)
G02202995Courtesy of FORD MOTOR CO.

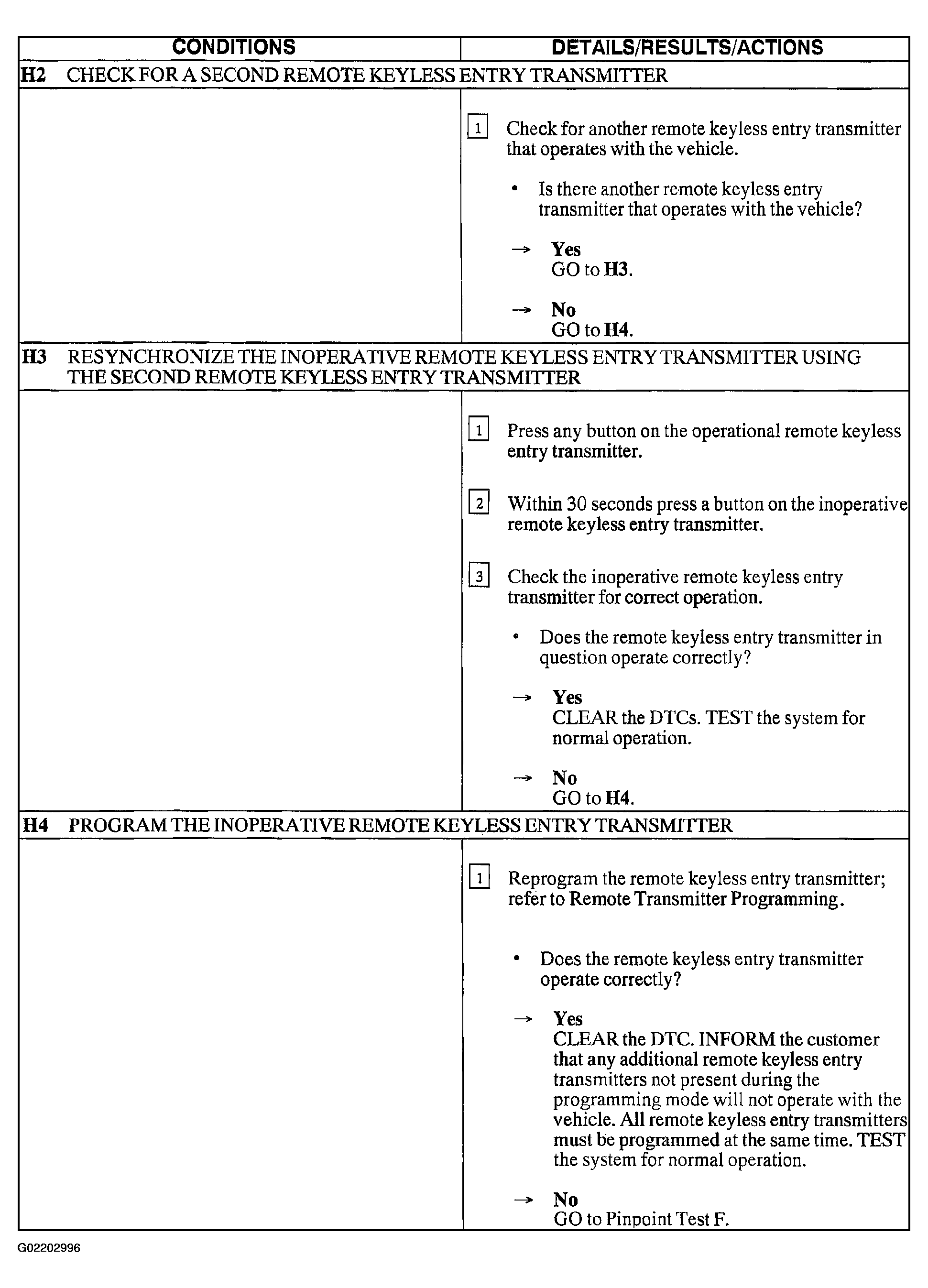

Fig 2: Pinpoint Test H: DTC B2425 RKE Out Of Synchronization (H2 - H4)
G02202996Courtesy of FORD MOTOR CO.
