Pinpoint Test P: The Yellow Abs Warning Indicator Does Not Self Check

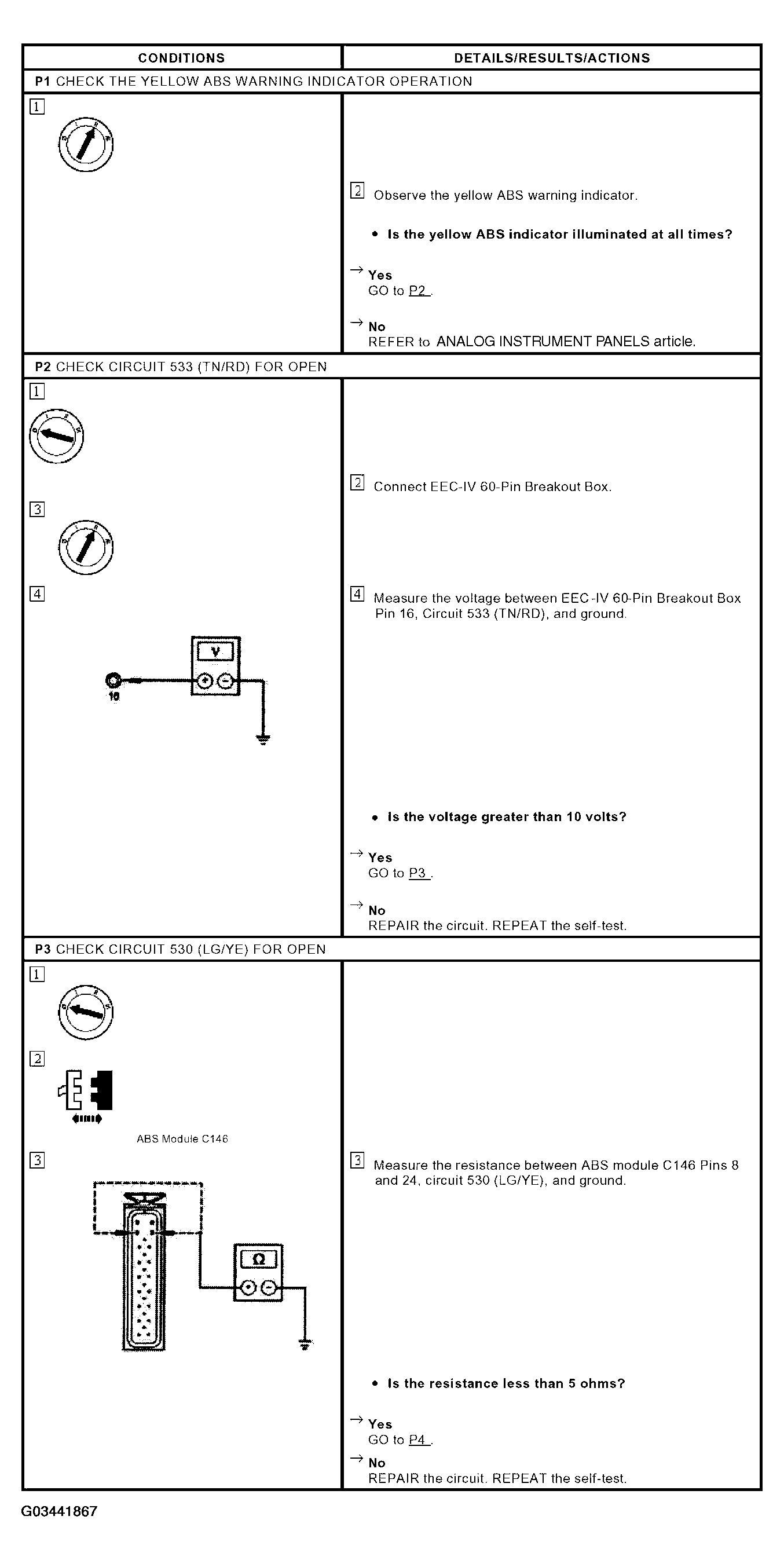

Fig 1: Pinpoint Test P: Yellow ABS Warning Indicator Does Not Self Check (Steps P1 - P3)

Courtesy of FORD MOTOR CO.

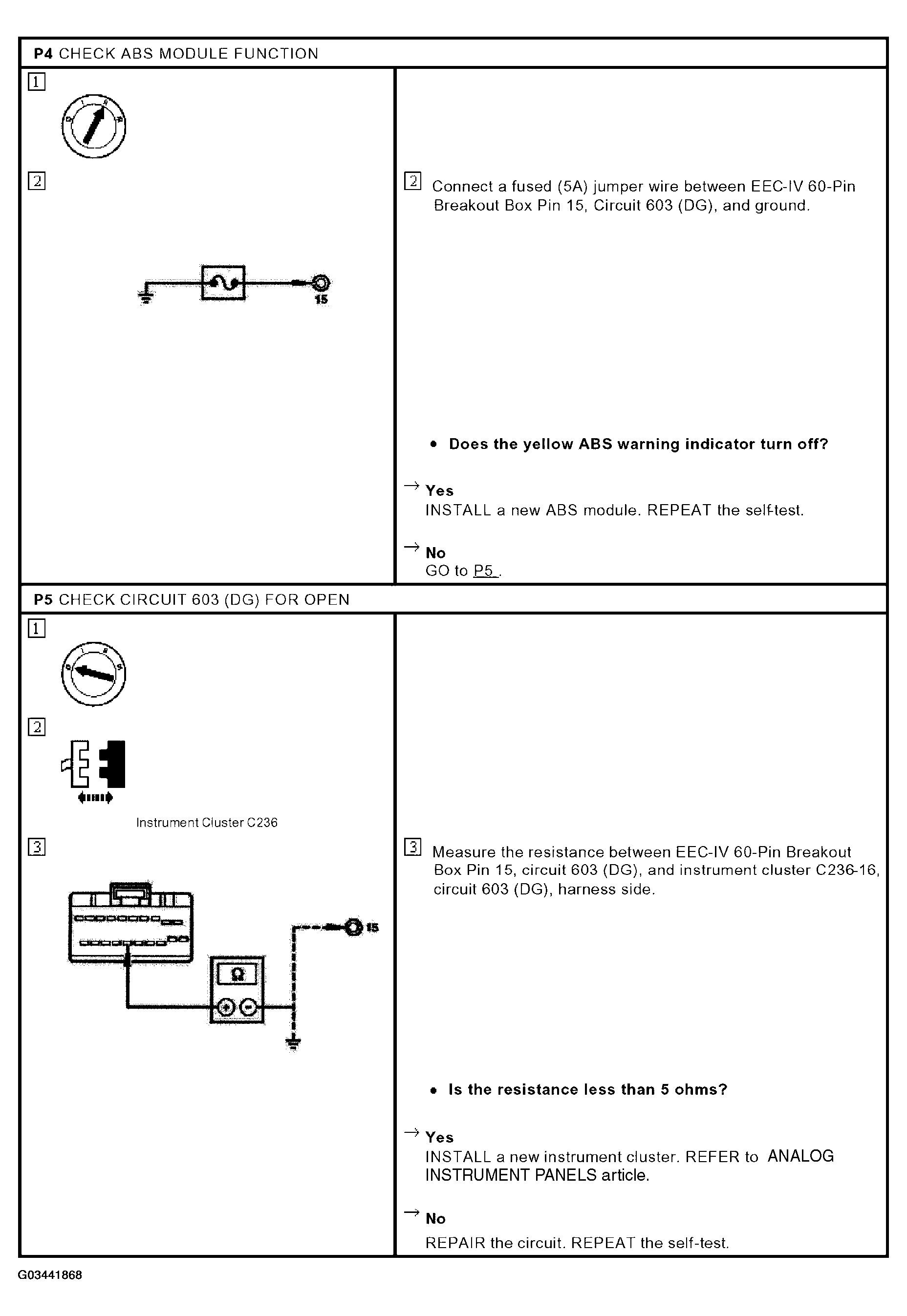

Fig 2: Pinpoint Test P: Yellow ABS Warning Indicator Does Not Self Check (Steps P4 - P5)

Courtesy of FORD MOTOR CO.
