Cylinder Block - Distortion

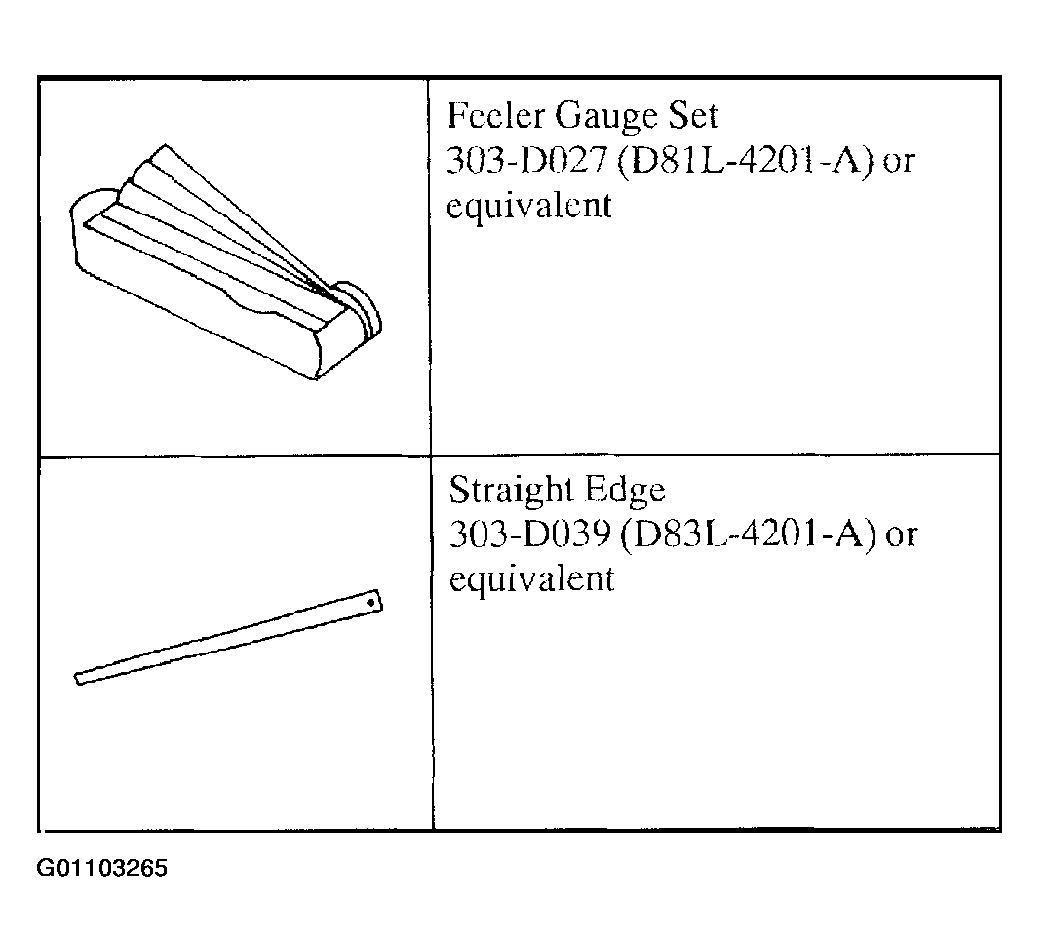

Fig 1: Special Tool(s)
G01103265Courtesy of FORD MOTOR CO.
  1. Use the special tools to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new cylinder block. See 3.0L V6 VIN S or 3.9L VIN A .

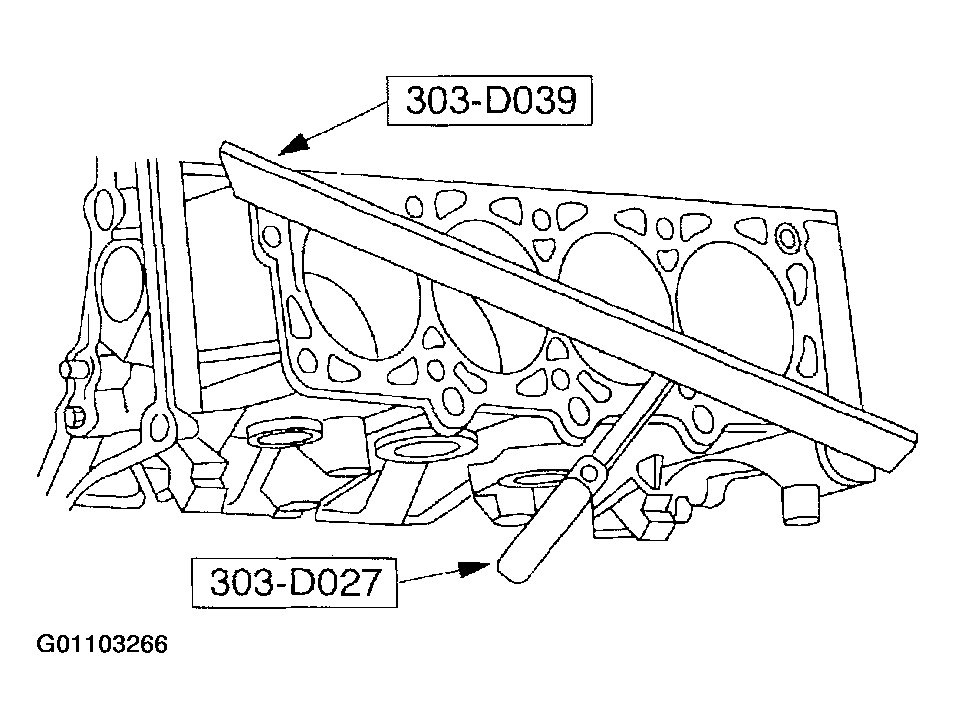

Fig 2: Measuring Cylinder Block Distortion
G01103266Courtesy of FORD MOTOR CO.
