Symptom Chart

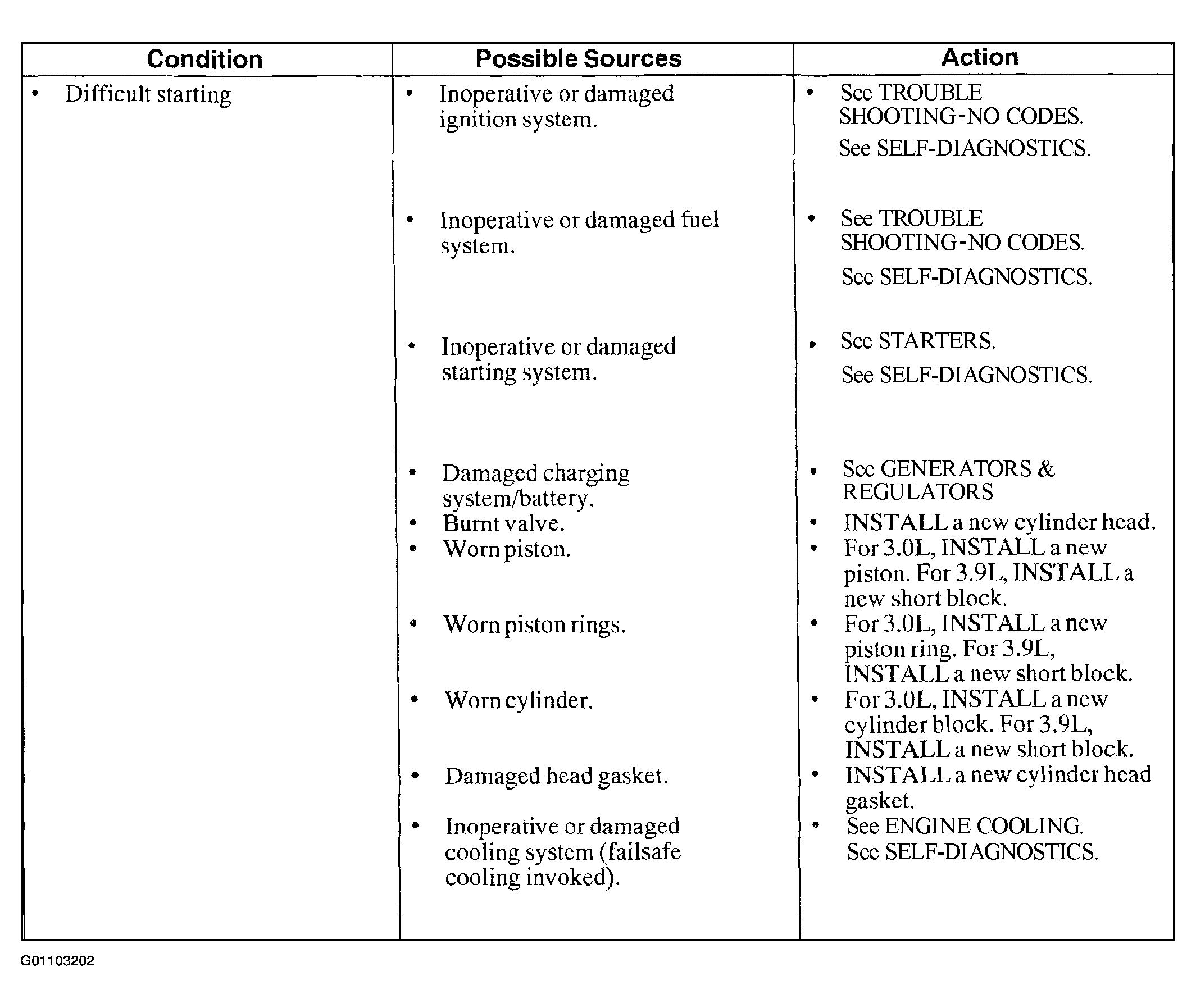

Fig 1: Symptom Chart (1 Of 5)
G01103202Courtesy of FORD MOTOR CO.

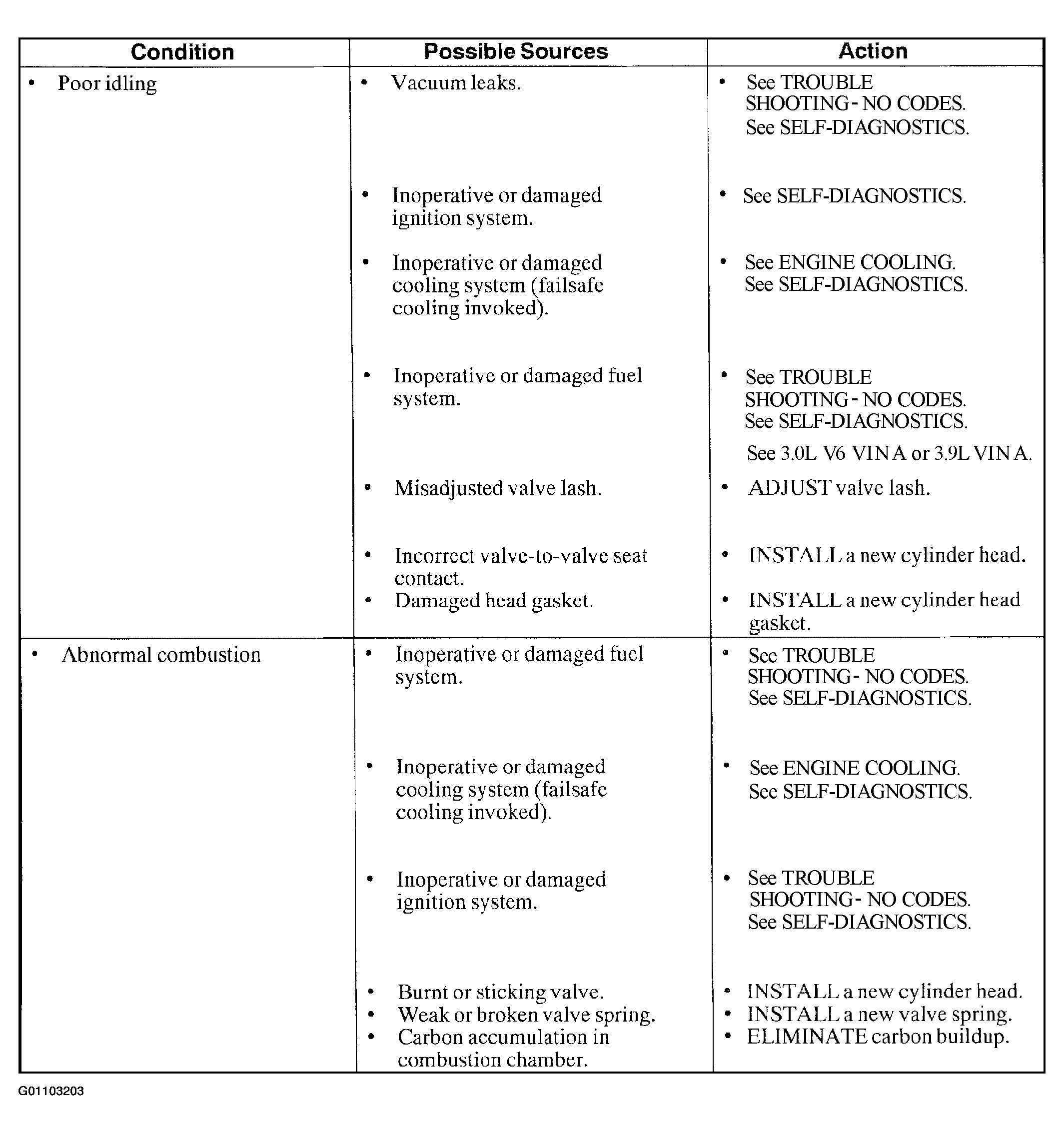

Fig 2: Symptom Chart (2 Of 5)
G01103203Courtesy of FORD MOTOR CO.

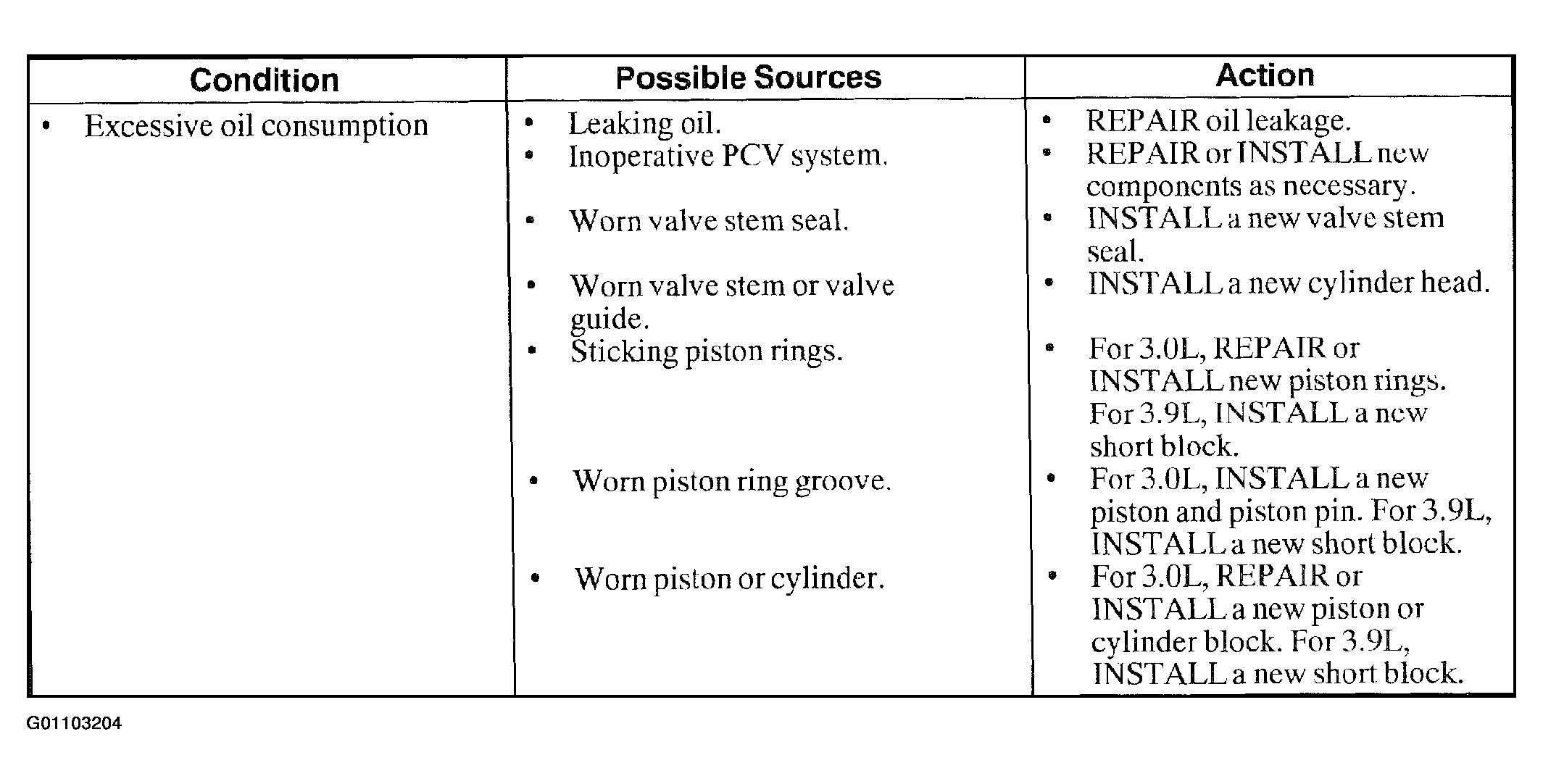

Fig 3: Symptom Chart (3 Of 5)
G01103204Courtesy of FORD MOTOR CO.

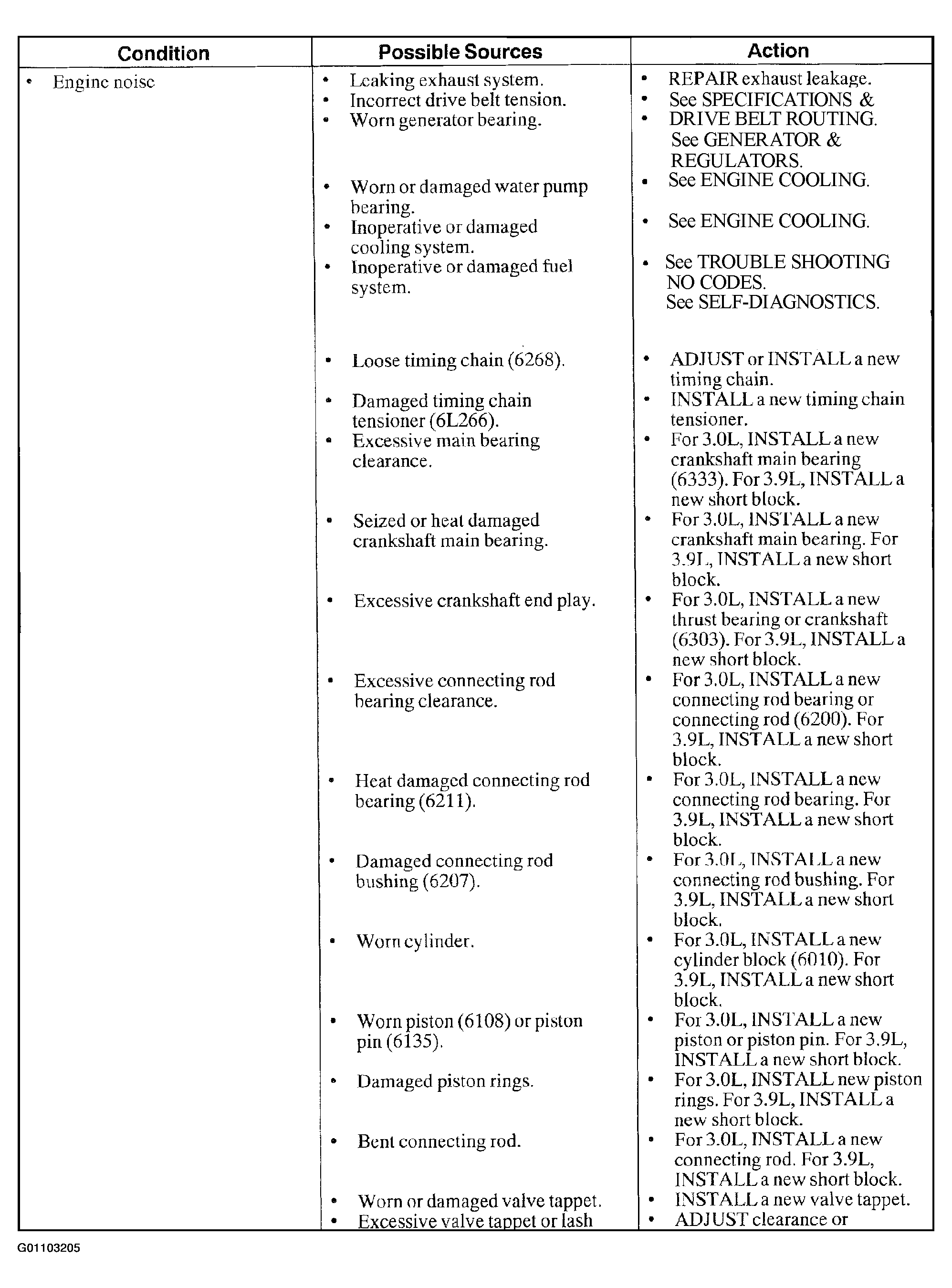

Fig 4: Symptom Chart (4 Of 5)
G01103205Courtesy of FORD MOTOR CO.

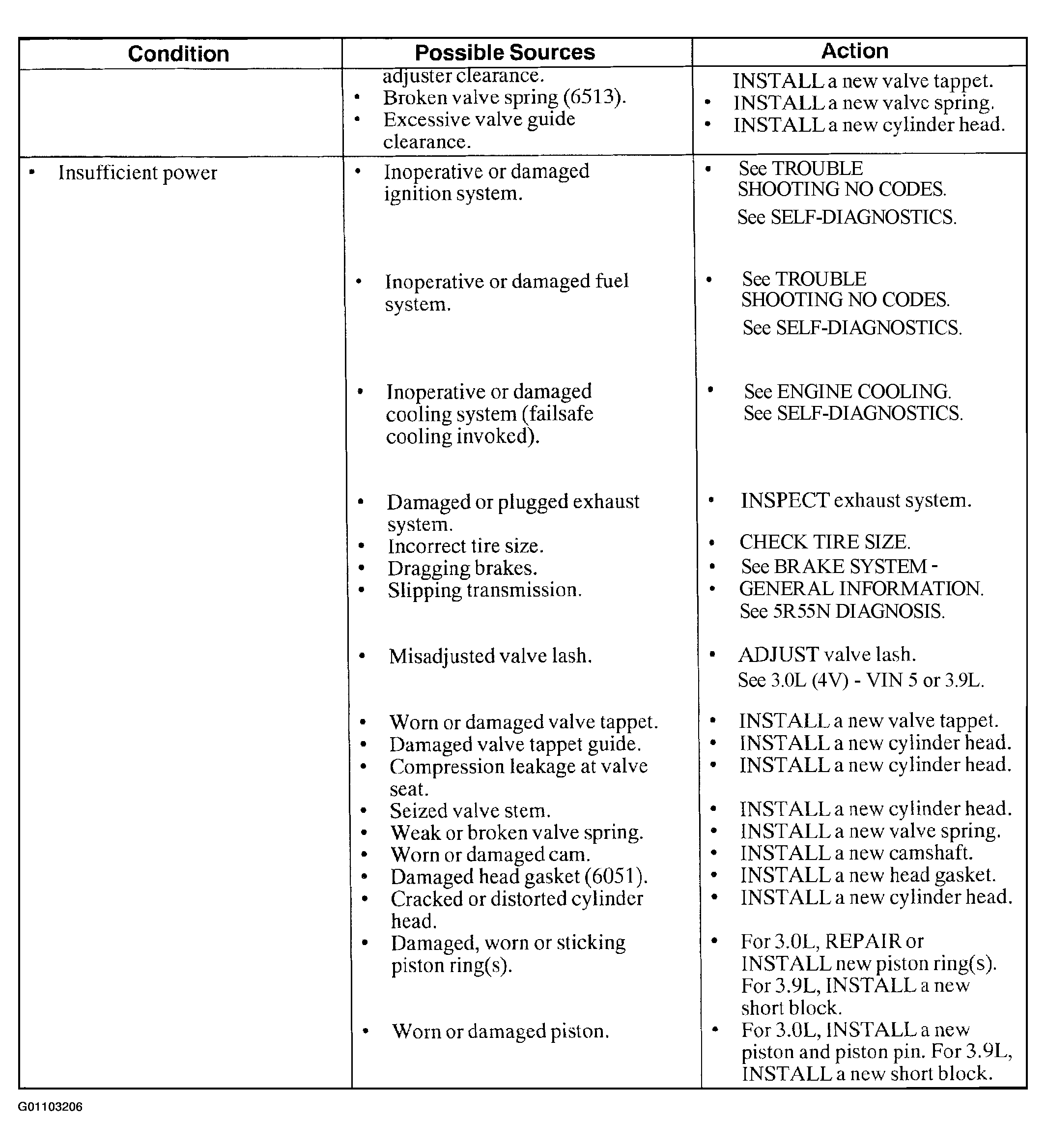

Fig 5: Symptom Chart (5 Of 5)
G01103206Courtesy of FORD MOTOR CO.
