Stability Assist Module Parameter Identification (PID) Index

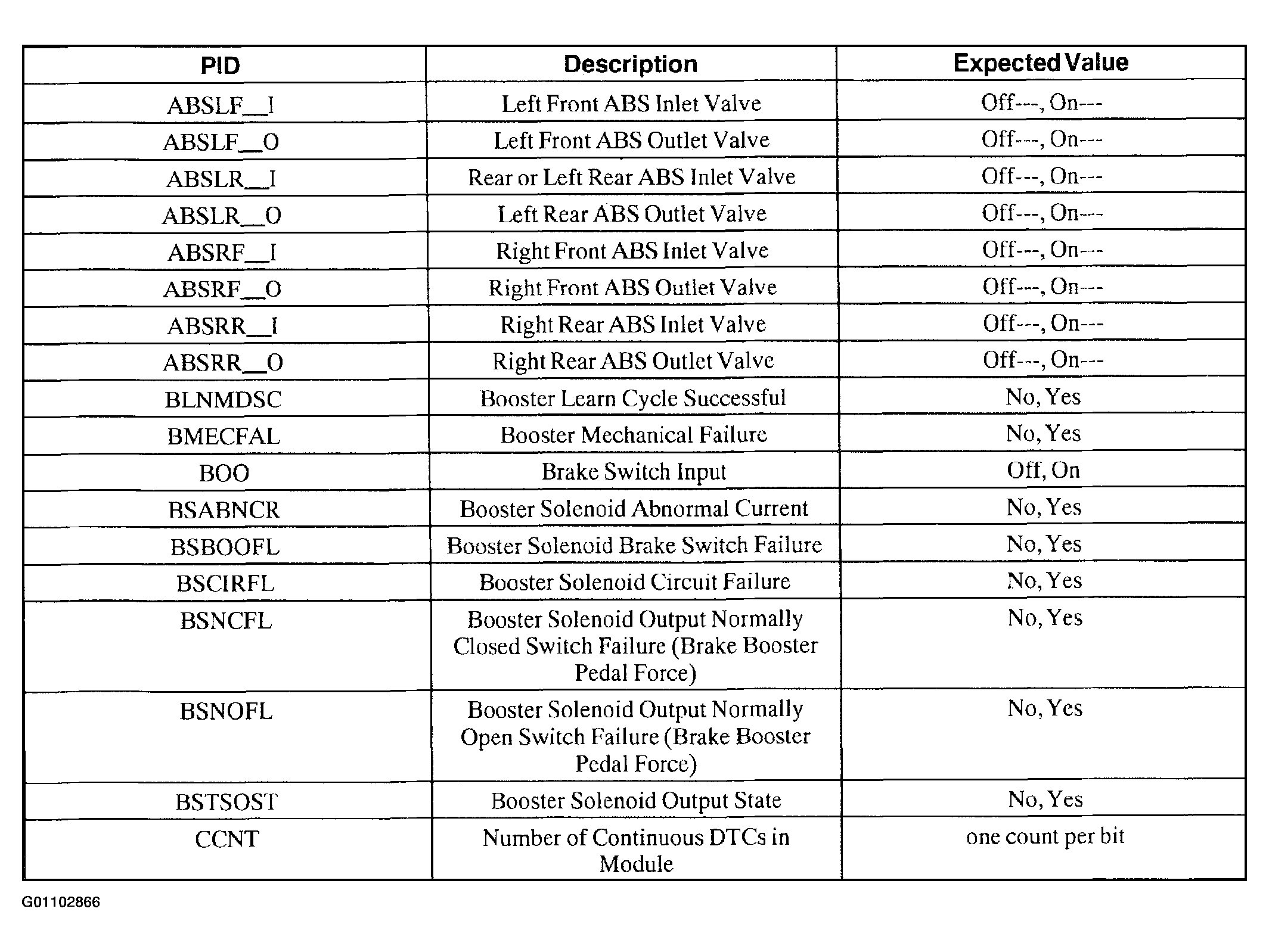

Fig 1: Stability Assist Module Parameter Identification (PID) Index (1 Of 3)
G01102866Courtesy of FORD MOTOR CO.

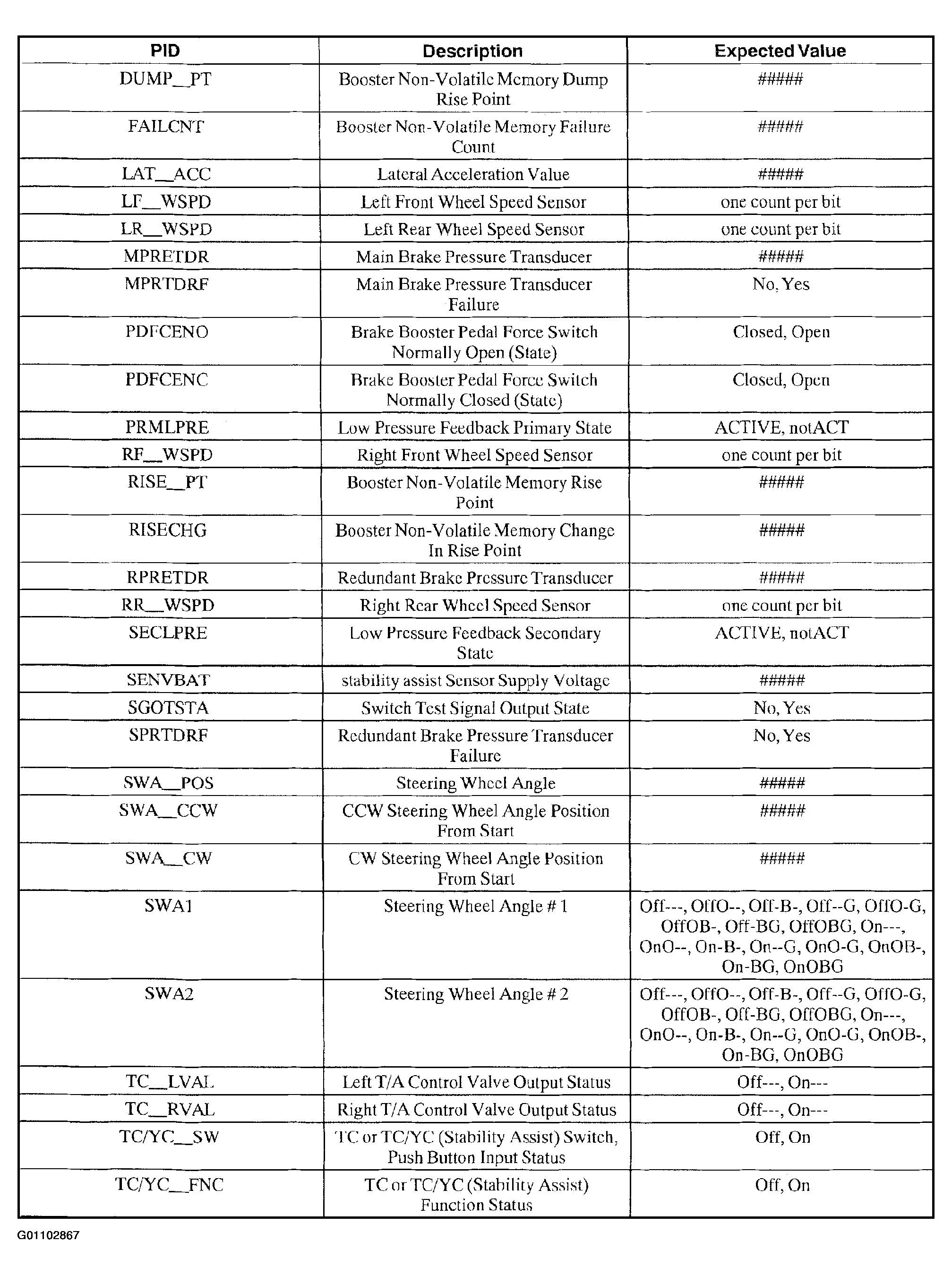

Fig 2: Stability Assist Module Parameter Identification (PID) Index (2 Of 3)
G01102867Courtesy of FORD MOTOR CO.

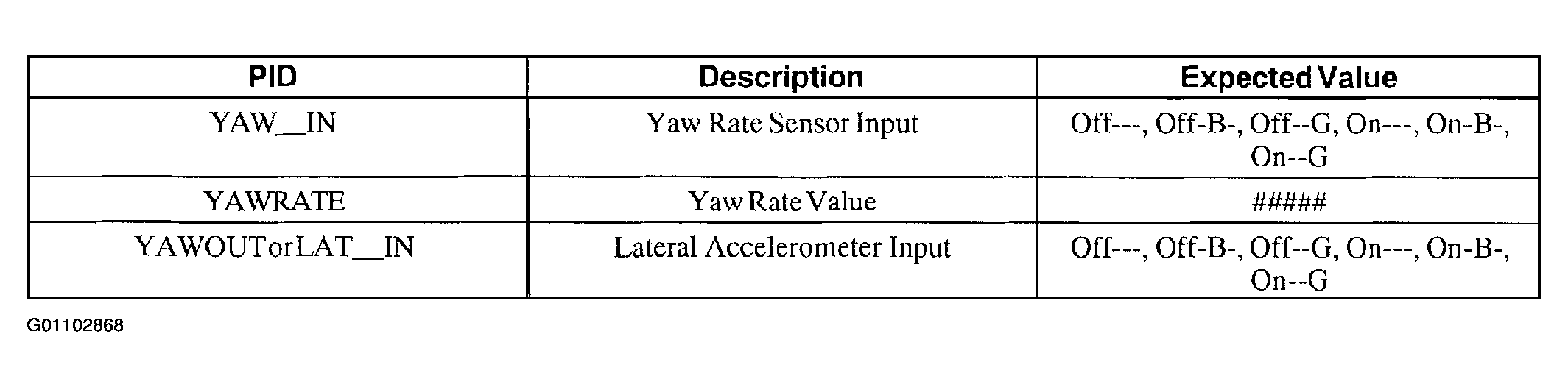

Fig 3: Stability Assist Module Parameter Identification (PID) Index (3 Of 3)
G01102868Courtesy of FORD MOTOR CO.
