Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the driver seat. For additional information, refer to SEATING .
  3. Remove the driver seat module (DSM).
    1. Disconnect the electrical connectors.
    2. Remove the screws.
    3. Remove the module.

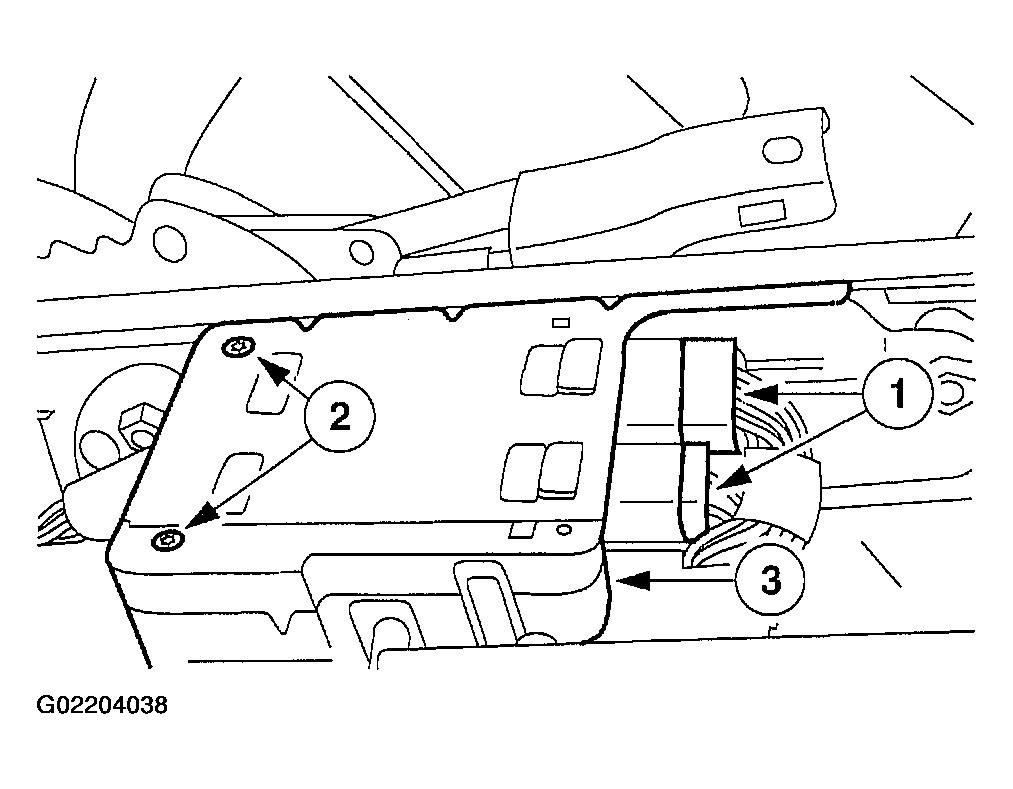

      Fig 1: Removing Driver Seat Module (DSM)
      G02204038Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
