Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Lower the instrument panel lower insulator
    1. Remove the pin-type retainers.
    2. Lower the instrument panel lower insulator.

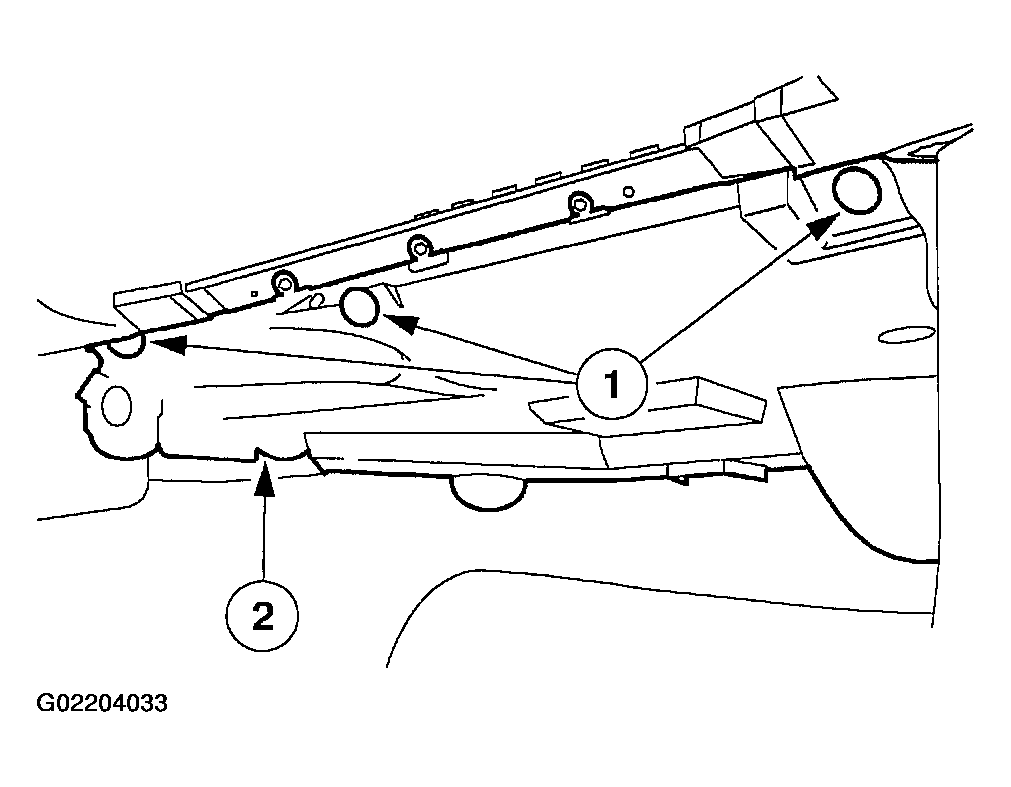

      Fig 1: Lowering Instrument Panel Lower Insulator
      G02204033Courtesy of FORD MOTOR CO.
  3. Remove the instrument panel lower insulator.
    1. Disconnect the power point electrical connector.
    2. Remove the footwell lamp.
    3. Remove the instrument panel lower insulator.

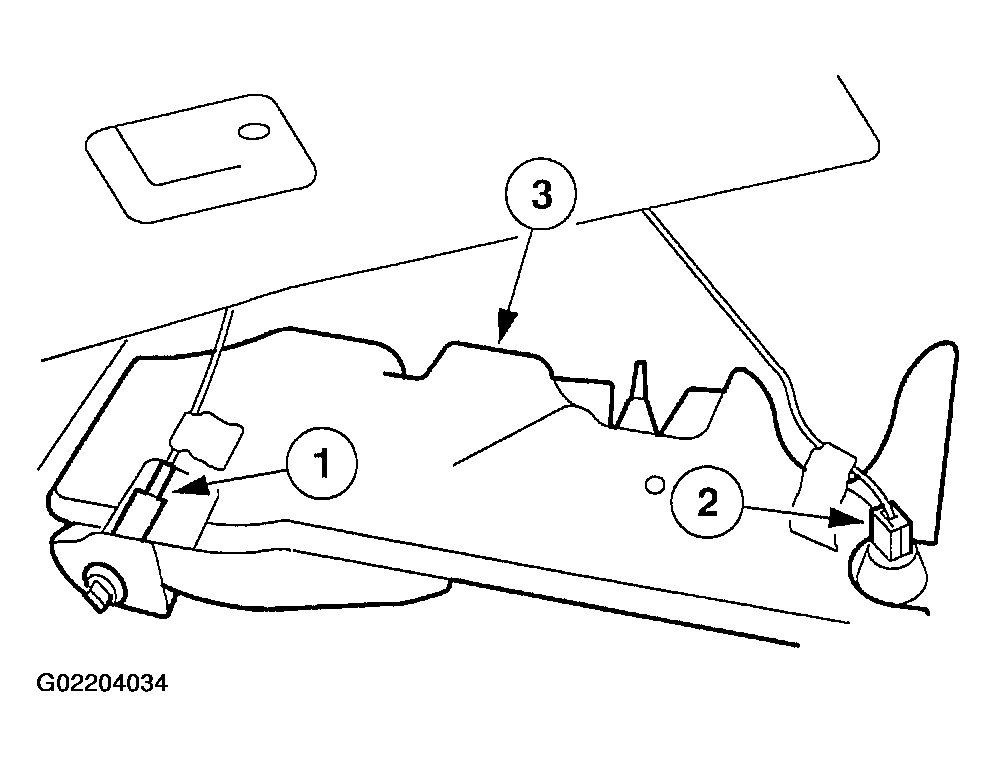

      Fig 2: Removing Instrument Panel Lower Insulator
      G02204034Courtesy of FORD MOTOR CO.
  4. Remove the air suspension module.
    1. Disconnect the electrical connectors.
    2. Remove the air suspension module.
      • Release the spring clips to remove the module from the bracket.

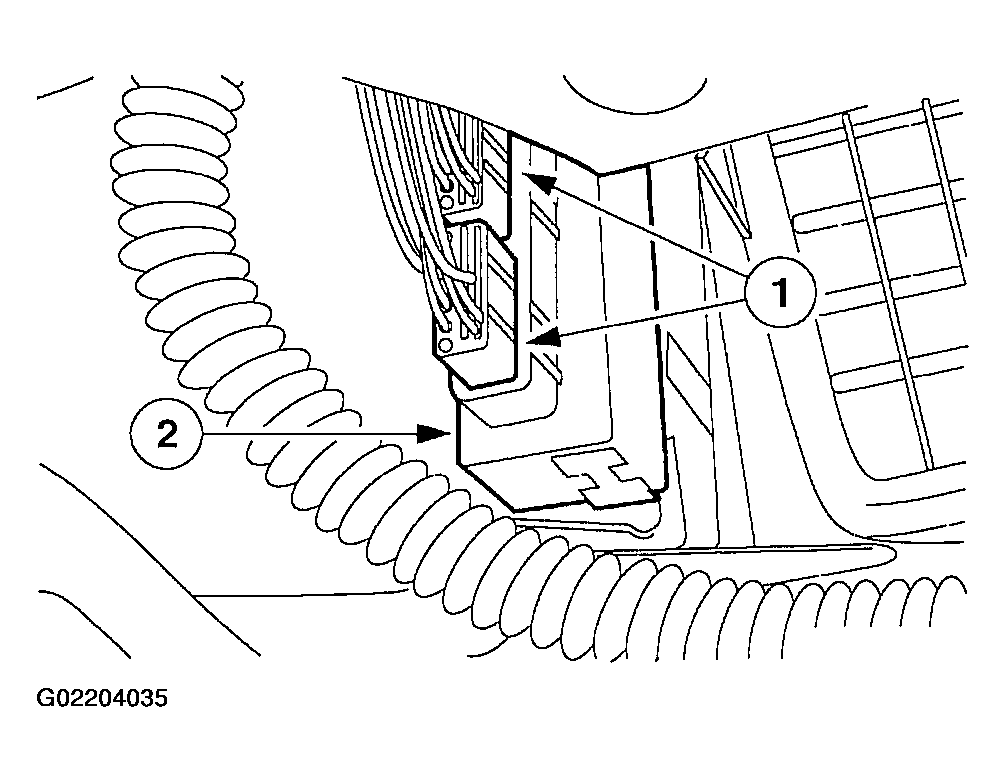

        Fig 3: Removing Air Suspension Module
        G02204035Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
