Clutch Plate Usage and Clearance Specification: Notes

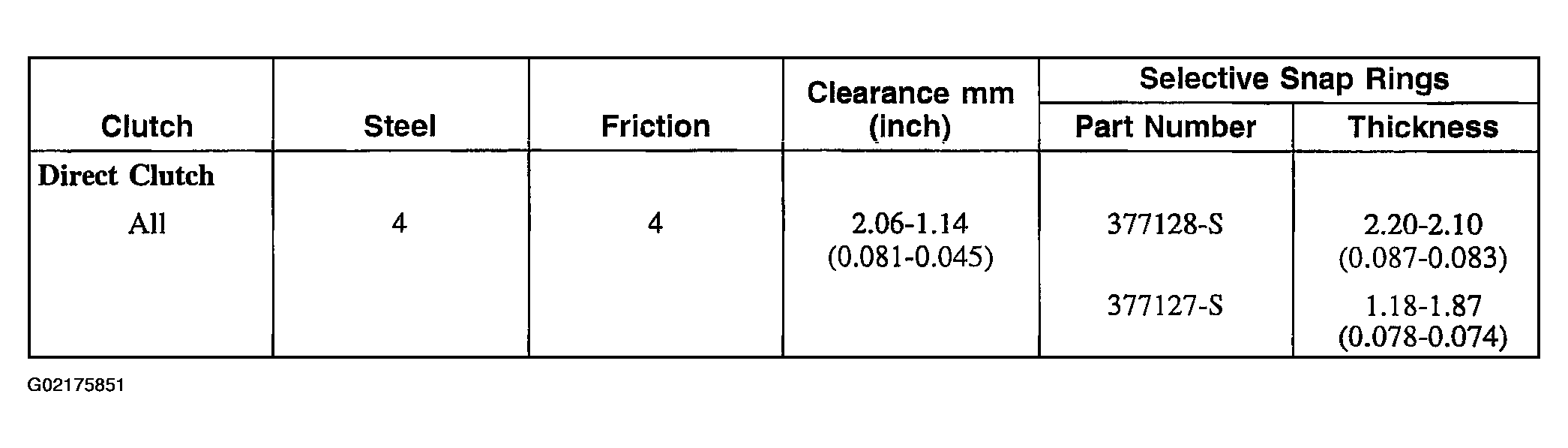

Fig 1: Clutch Plate Usage And Clearance Specification (1 Of 2)
G02175851Courtesy of FORD MOTOR CO.

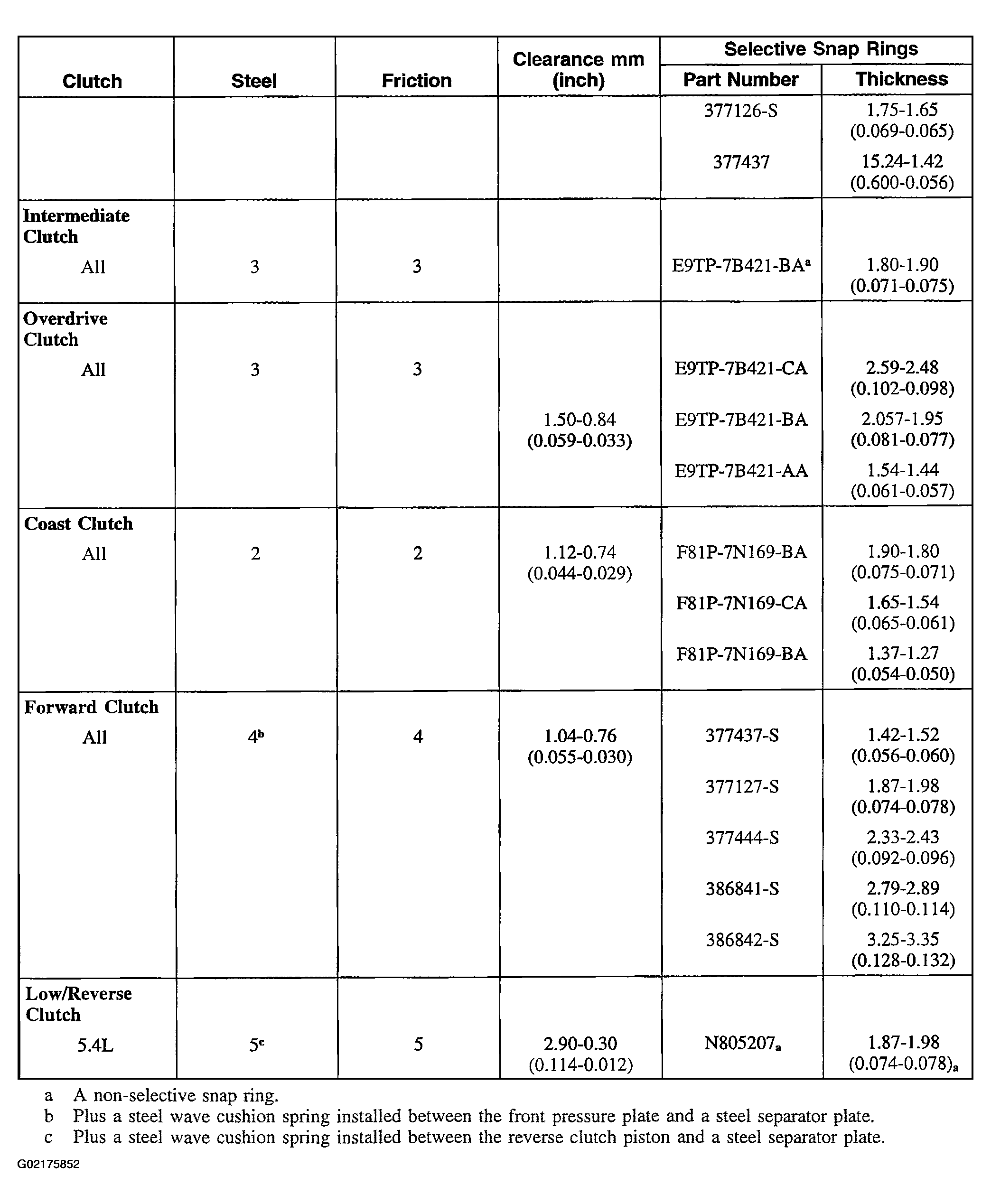

Fig 2: Clutch Plate Usage And Clearance Specification (2 Of 2)
G02175852Courtesy of FORD MOTOR CO.
