Pinpoint Test A: The Shift Interlock System Does Not Release Or Lock Properly

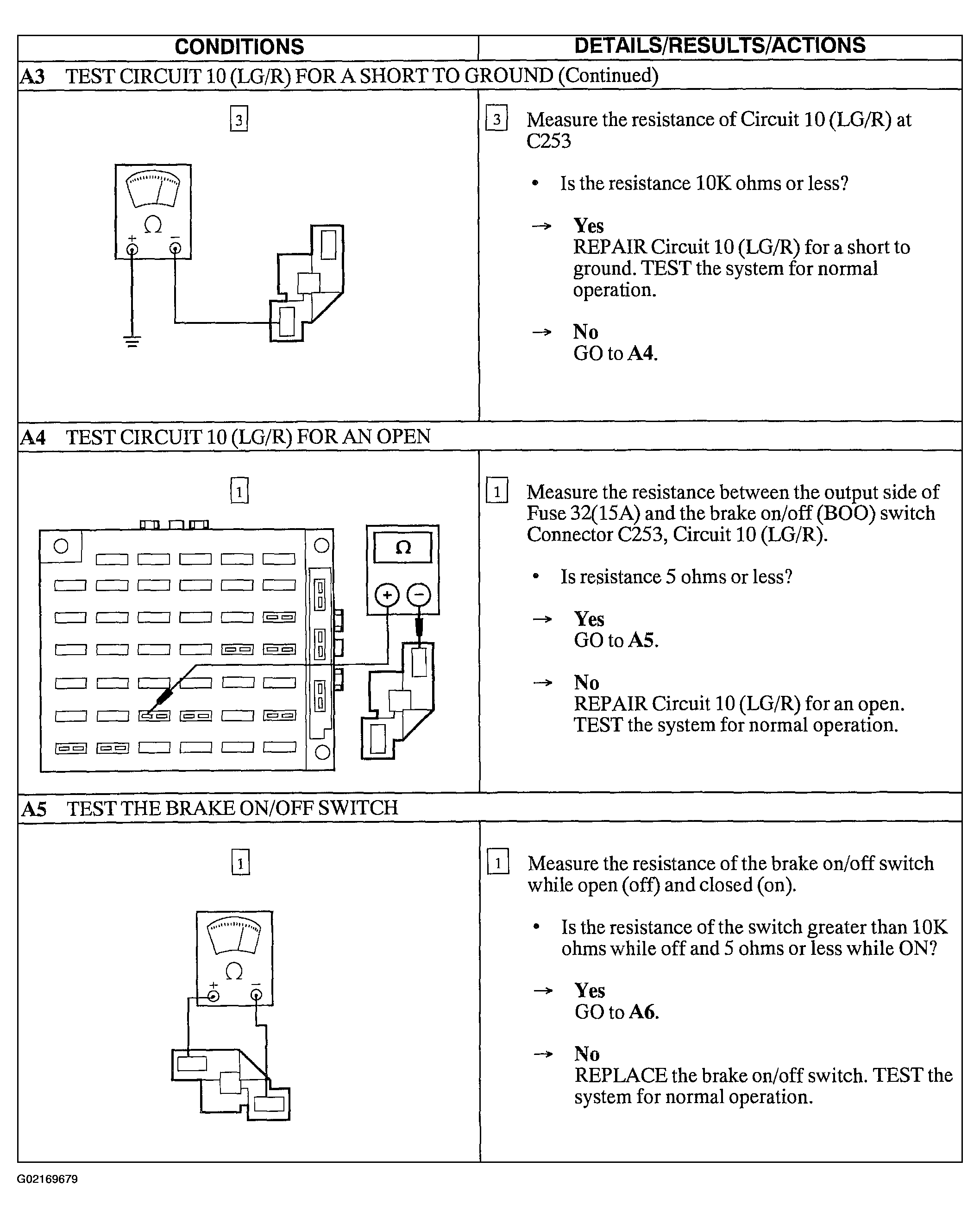

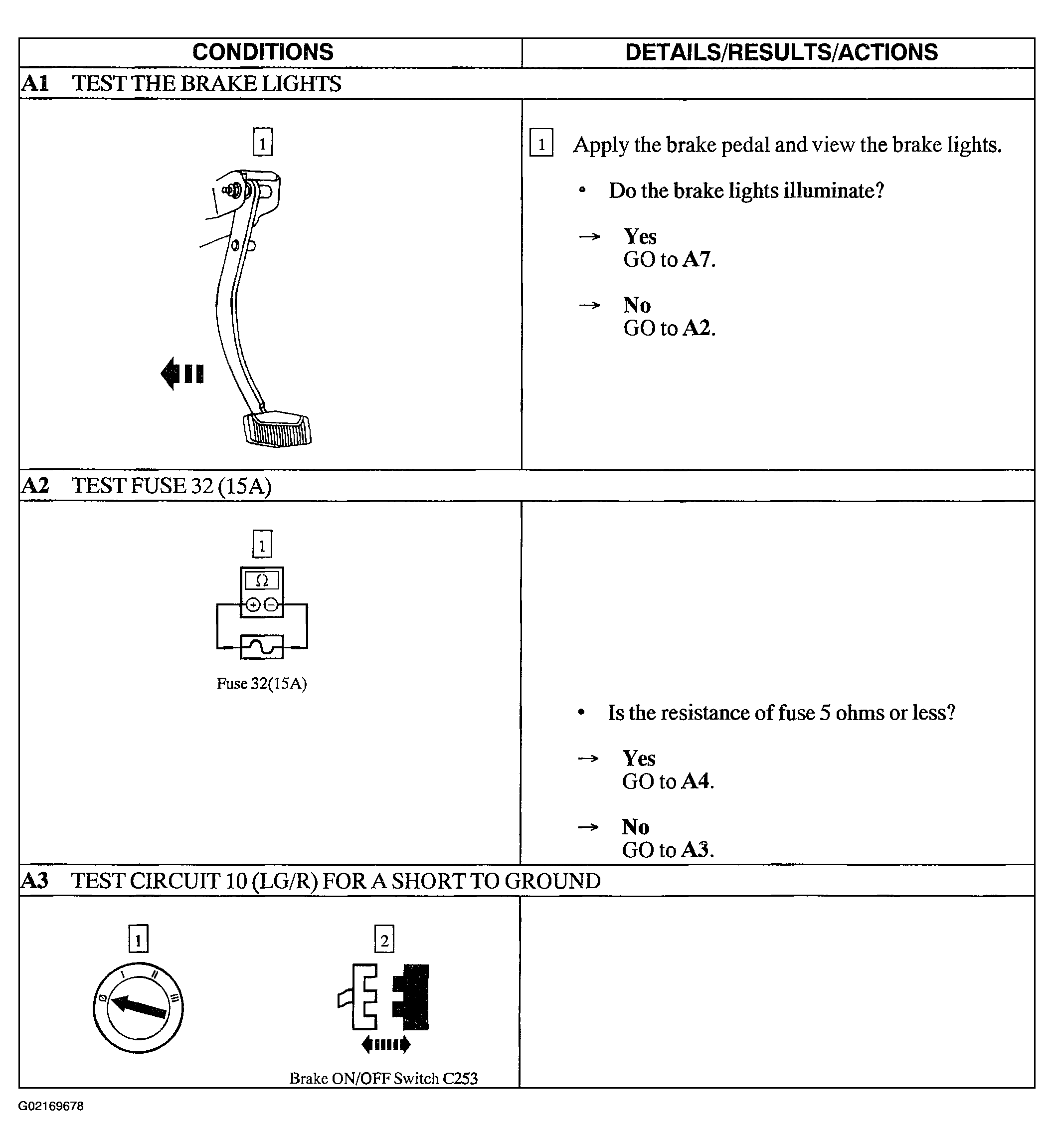

Fig 1: Pinpoint Test A (Steps 1-3)

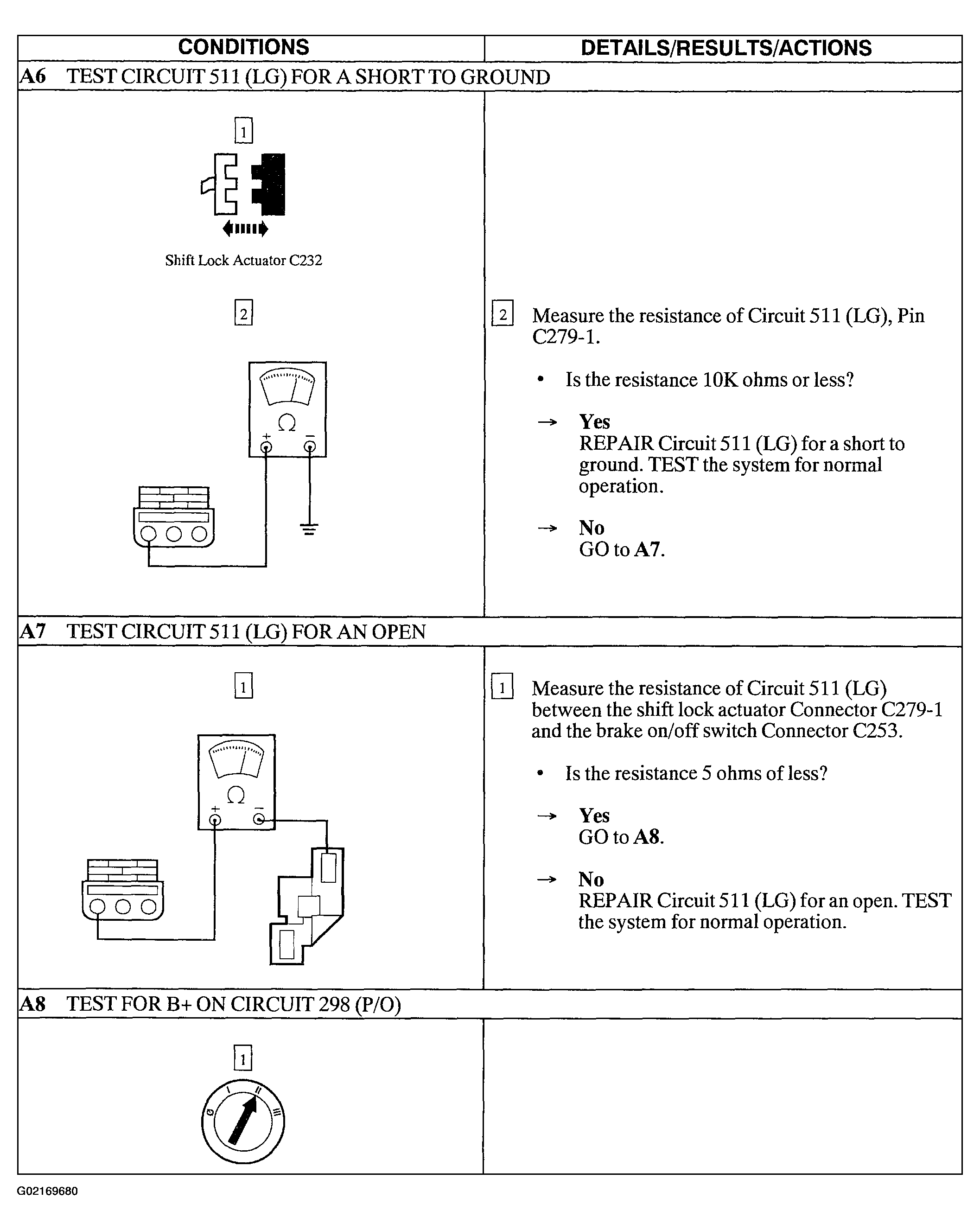

Fig 2: Pinpoint Test A (Step 3 Cont.-5)

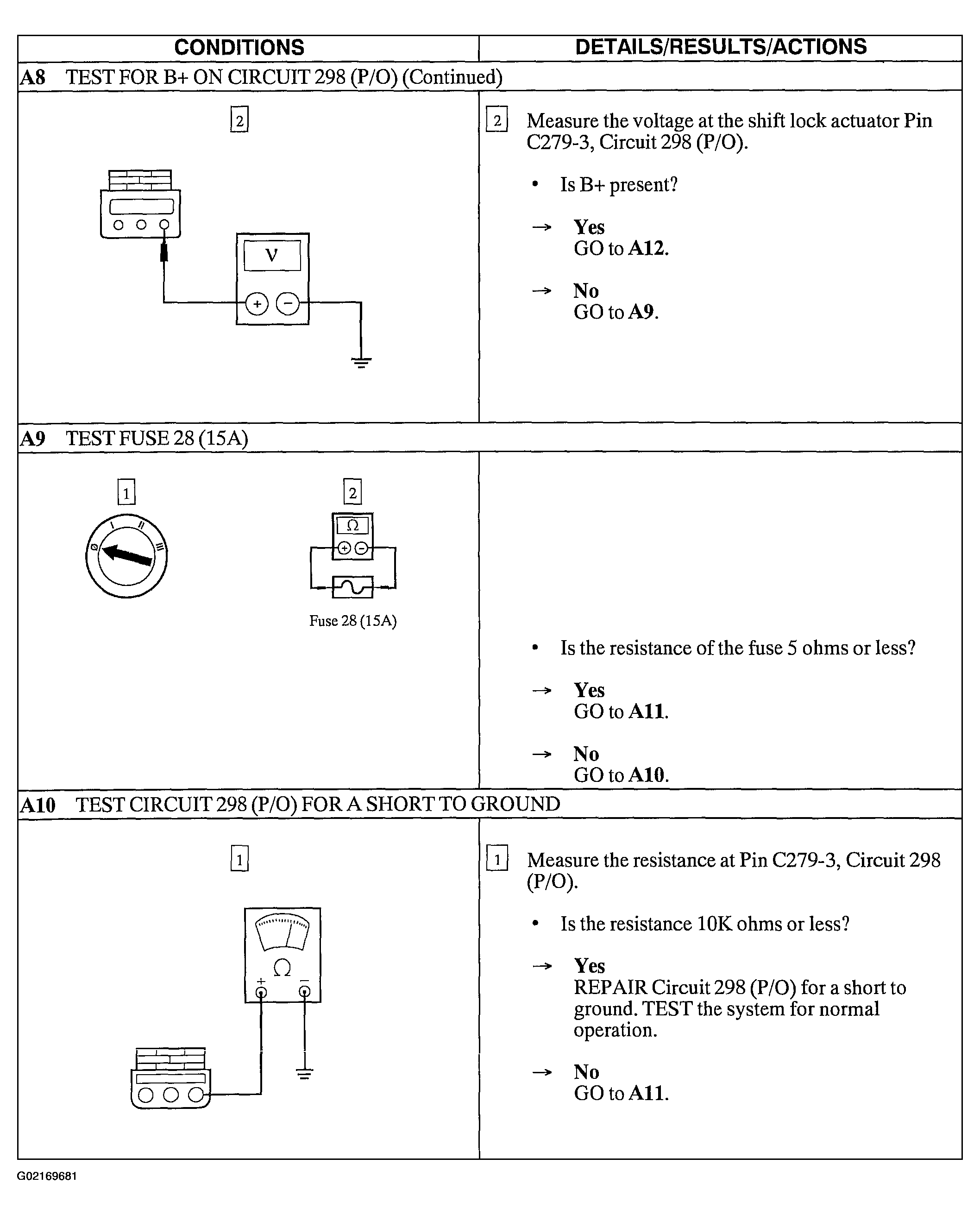

Fig 3: Pinpoint Test A (Steps 6-8)

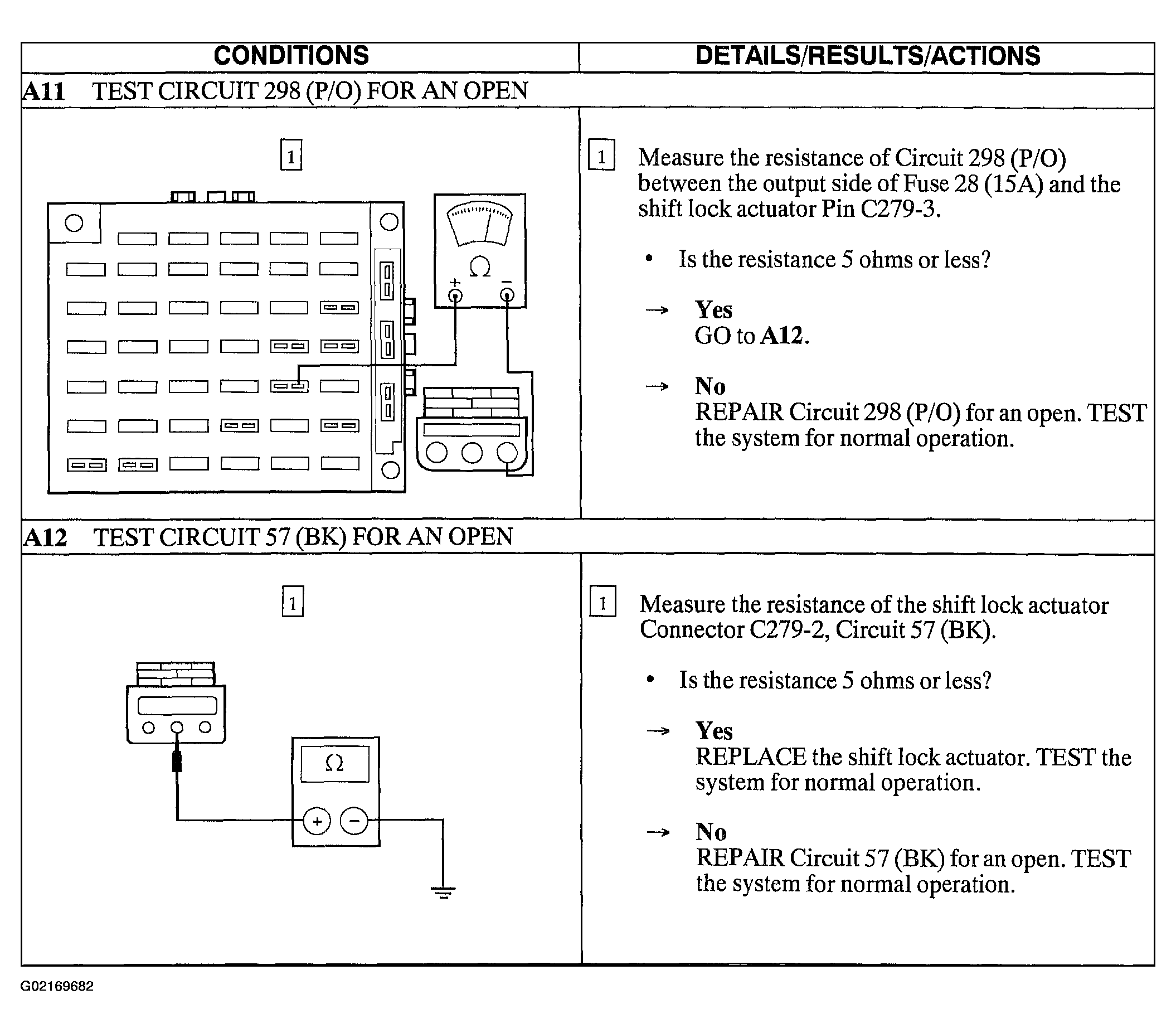

Fig 4: Pinpoint Test A (Step 8 Cont.-10)

Fig 5: Pinpoint Test A (Steps 11-12)
