Intermediate Clutch Cylinder: Notes

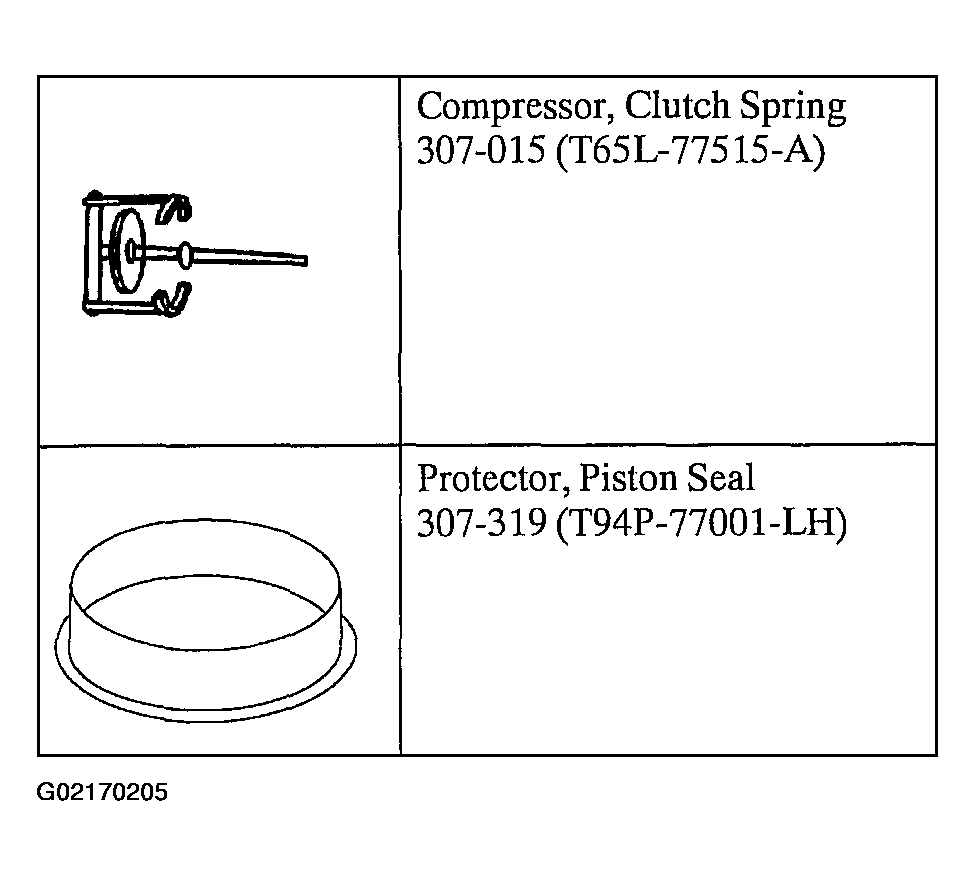

Fig 1: Special Tool(s)
G02170205

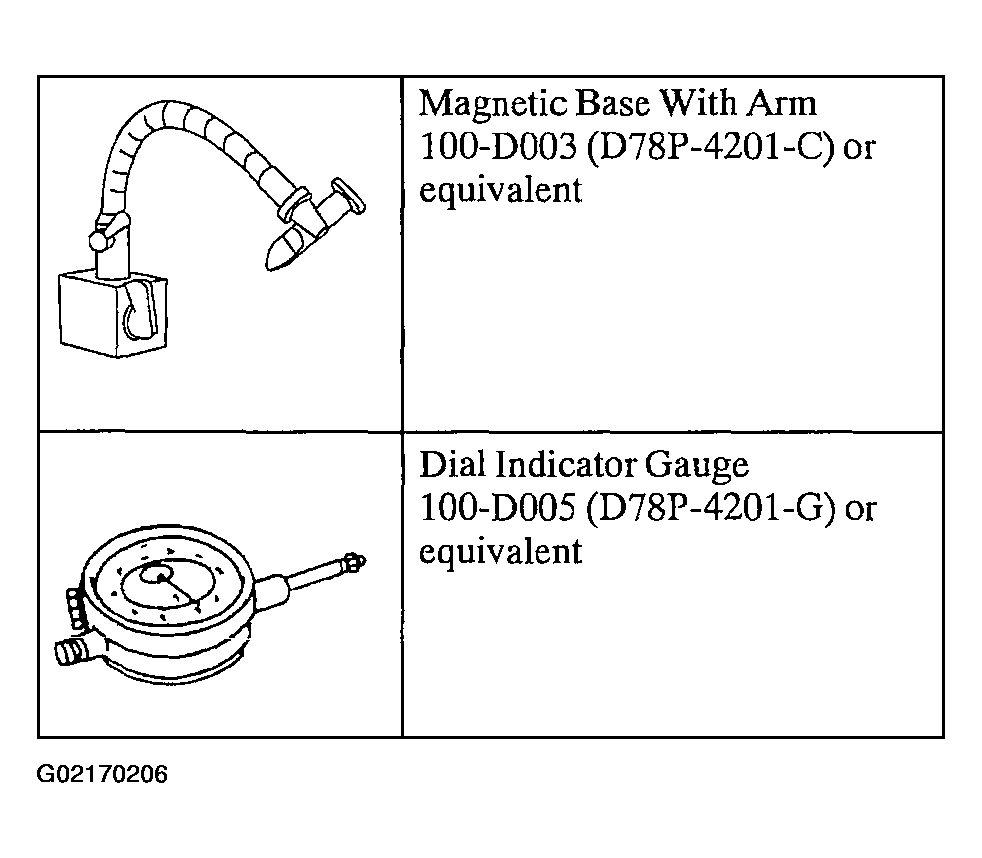

Fig 2: Special Tool(s)
G02170206

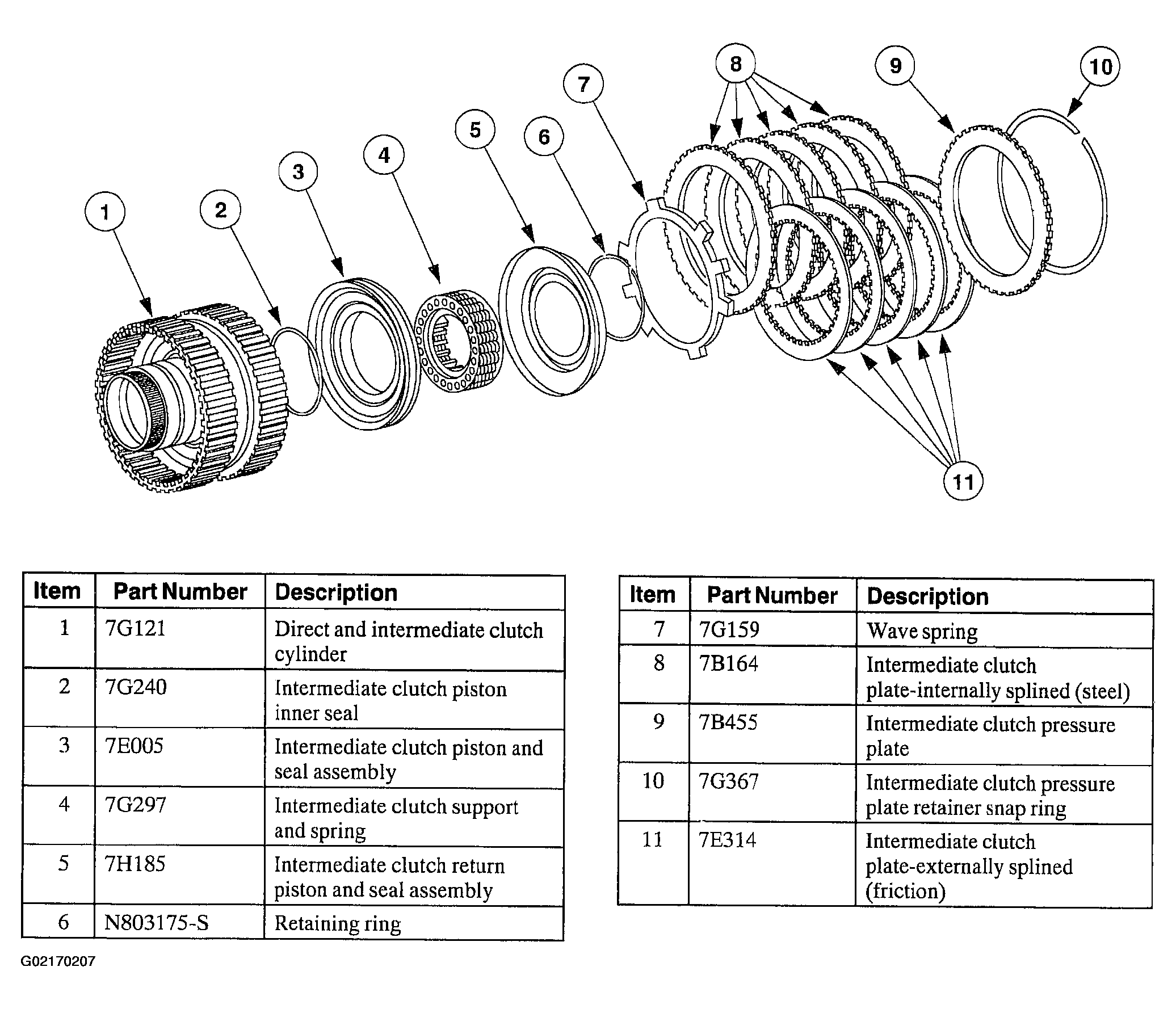

Fig 3: Intermediate Clutch Cylinder Exploded View
G02170207
