Pinpoint Test Y: The Temperature Control Is Inoperative Using The Rear Auxiliary Climate Controls

WARNING: This page is about a different car, the 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Carry out this test only if the front auxiliary climate control assembly temperature control operates correctly.

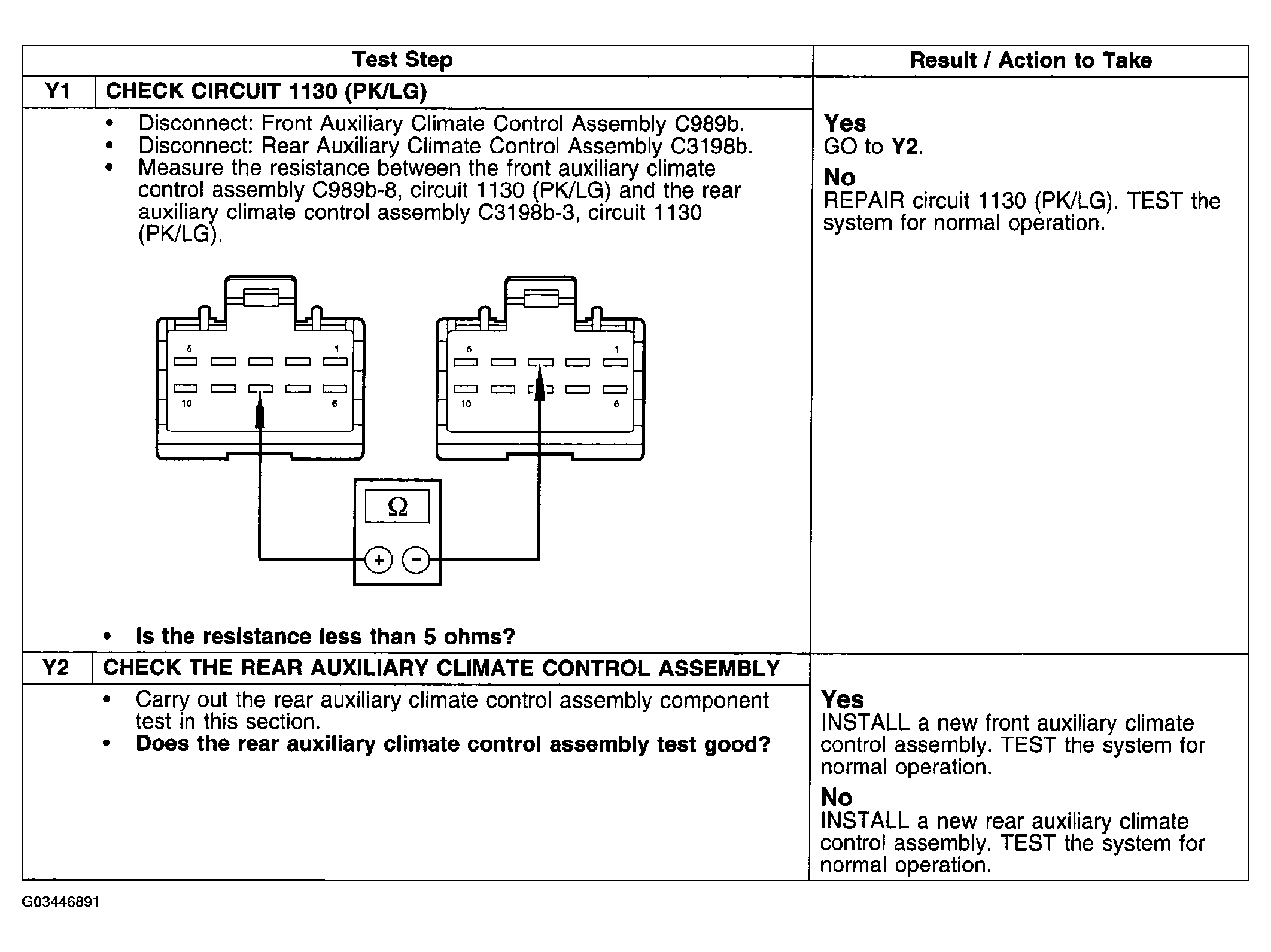

Fig 1: Pinpoint Test Y: Temperature Control Is Inoperative Step (Y1 To Y2)
G03446891Courtesy of FORD MOTOR CO.
