Pinpoint Test V: The Panel/Floor Control Is Inoperative Using The Front Auxiliary Climate Controls

WARNING: This page is about a different car, the 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

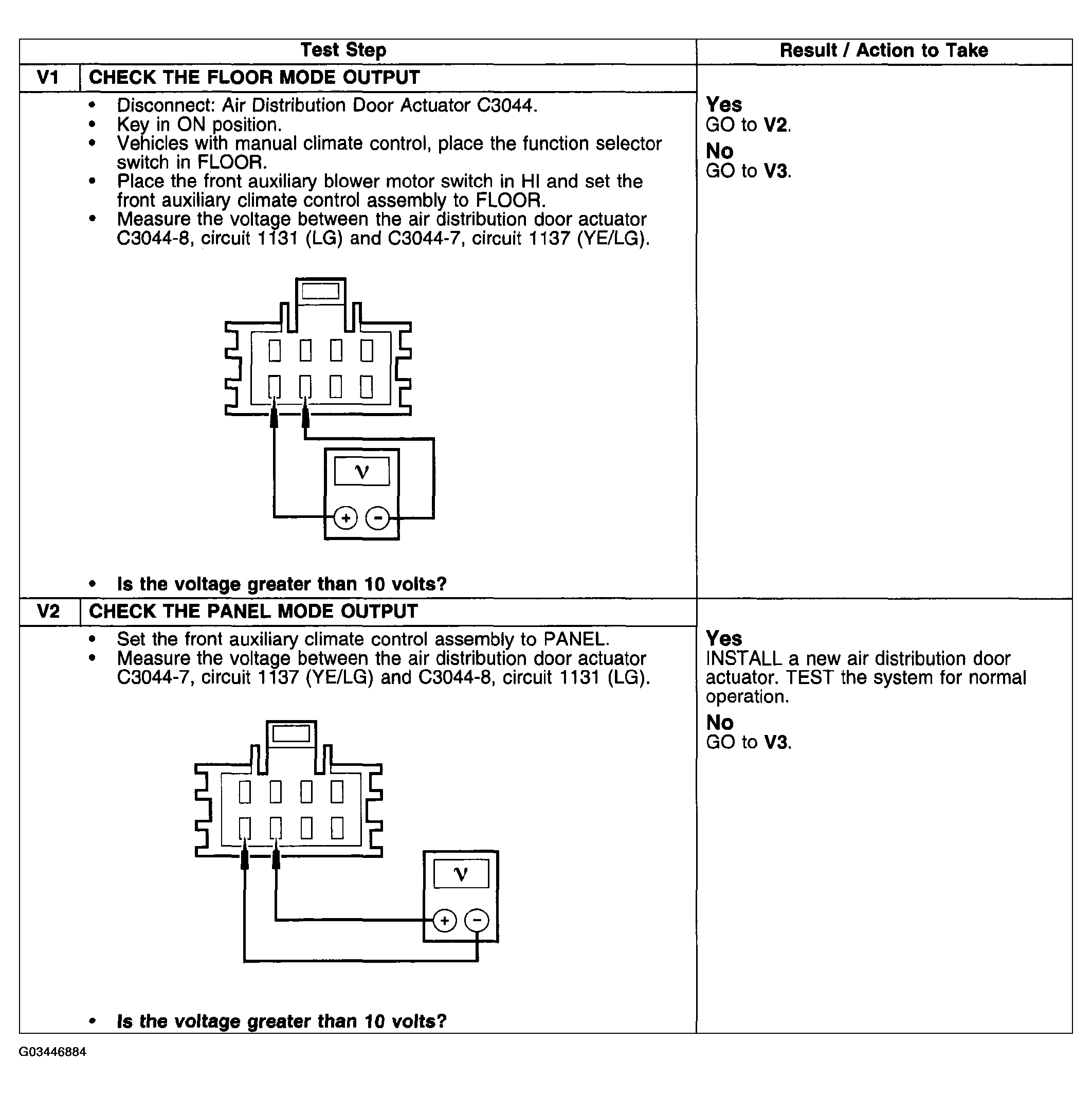

Fig 1: Pinpoint Test V: Panel/Floor Control Is Inoperative Step (V1 To V2)
G03446884Courtesy of FORD MOTOR CO.

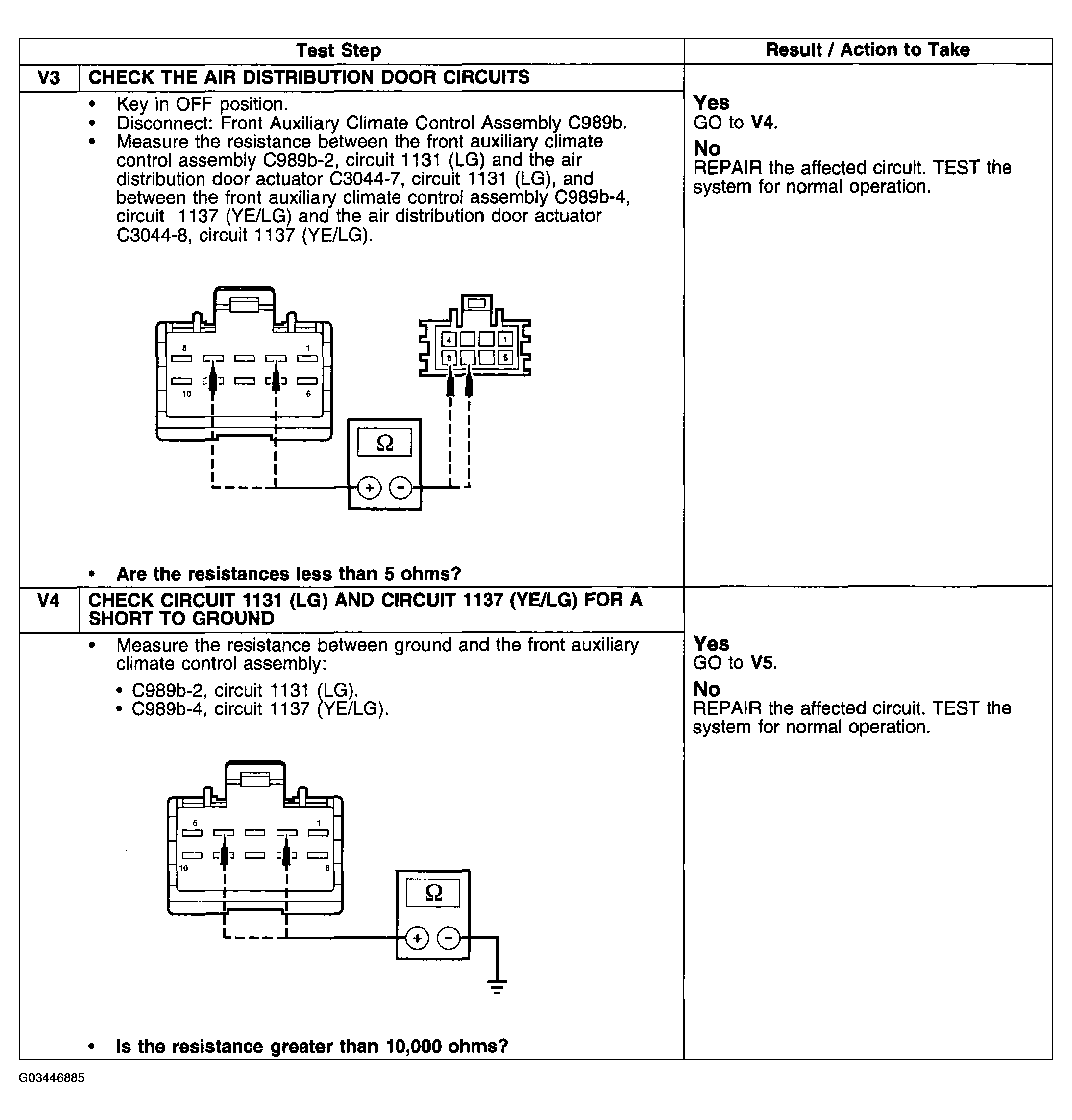

Fig 2: Pinpoint Test V: Panel/Floor Control Is Inoperative Step (V3 To V4)
G03446885Courtesy of FORD MOTOR CO.

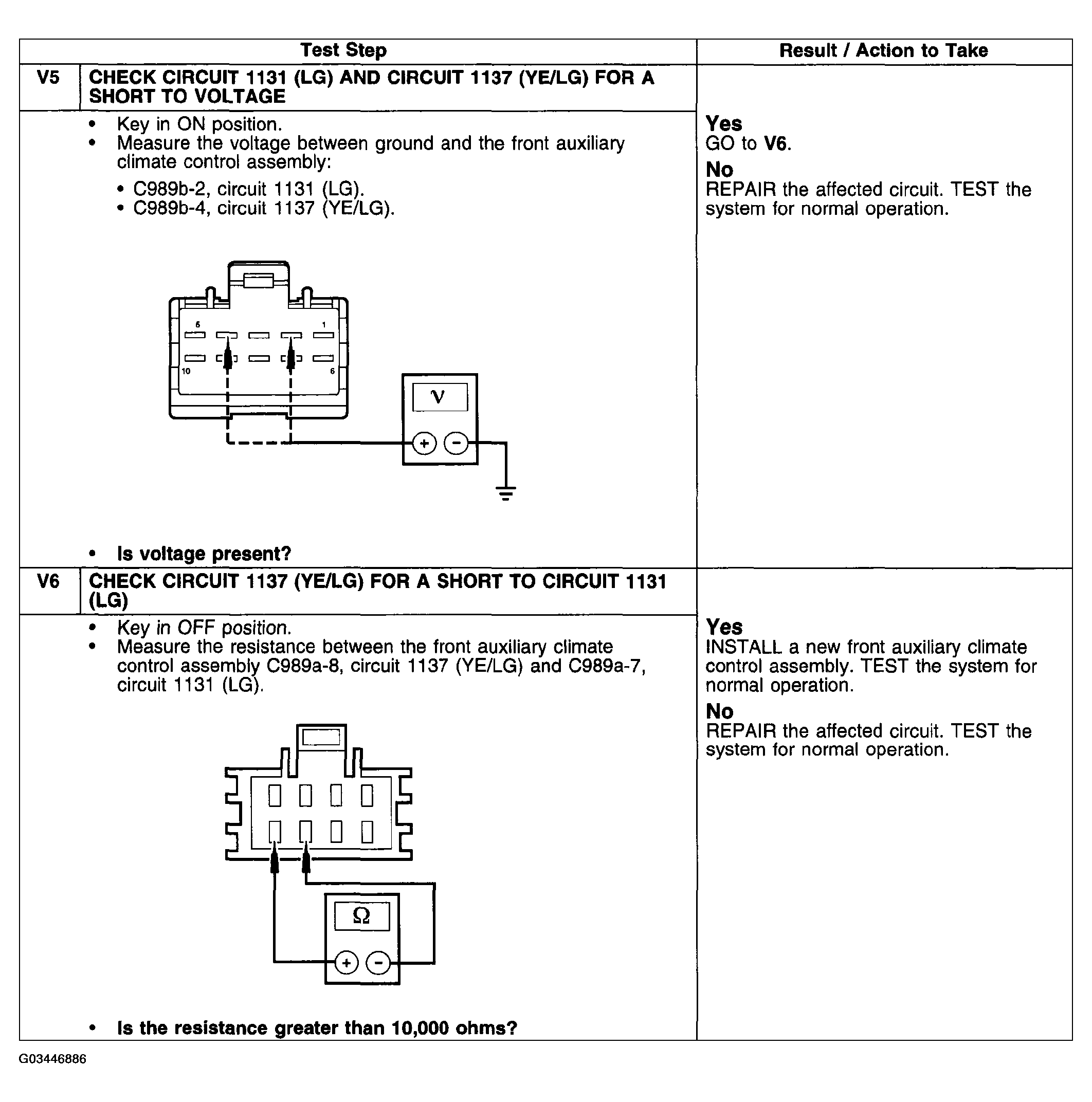

Fig 3: Pinpoint Test V: Panel/Floor Control Is Inoperative Step (V5 To V6)
G03446886Courtesy of FORD MOTOR CO.
