WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

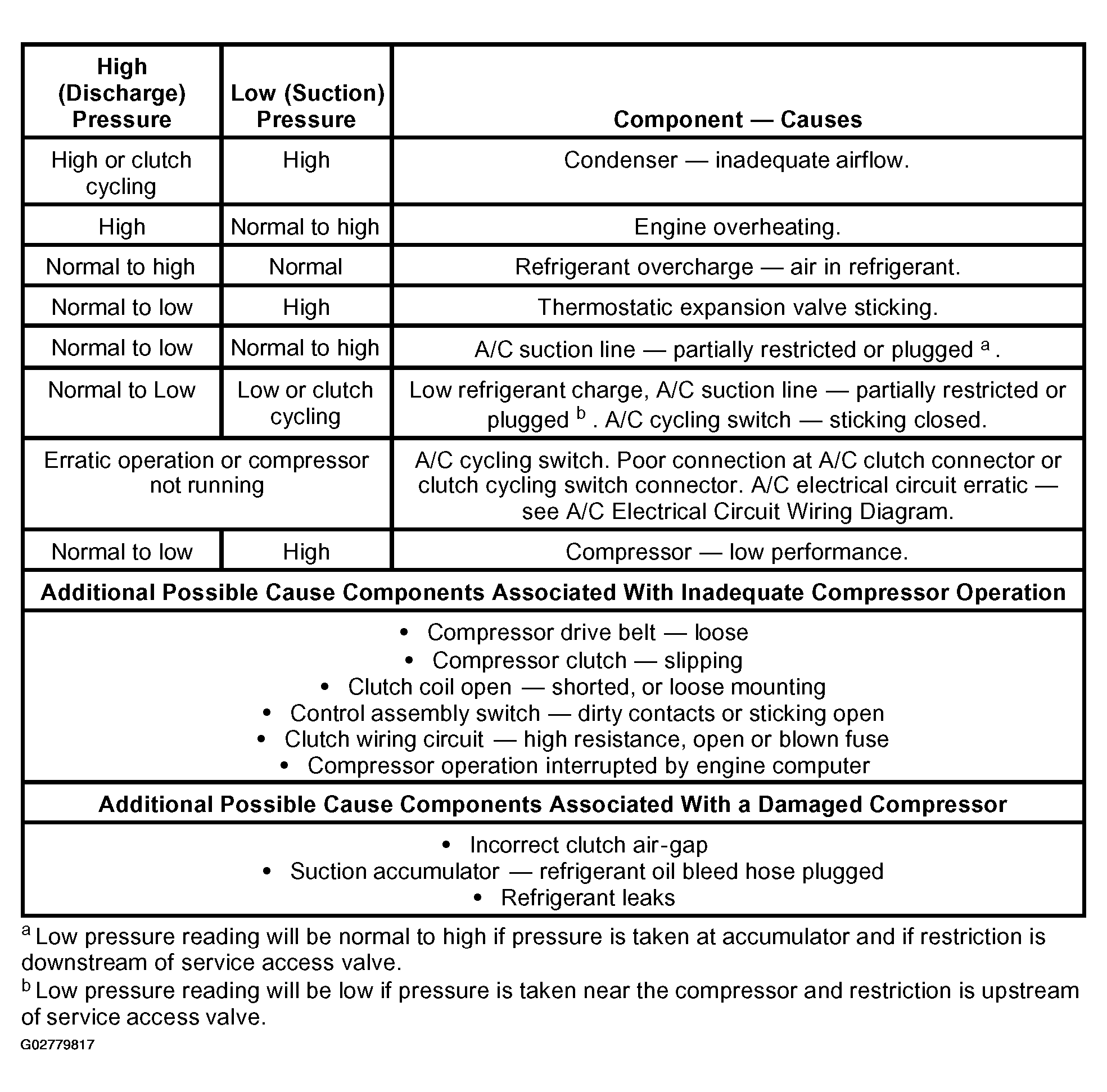

The following table is used to guide diagnosis of the refrigerant system if operating pressures are outside normal limits.
