Pinpoint Test Z: The Temperature Control Is Inoperative Using The Front Auxiliary Climate Controls

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

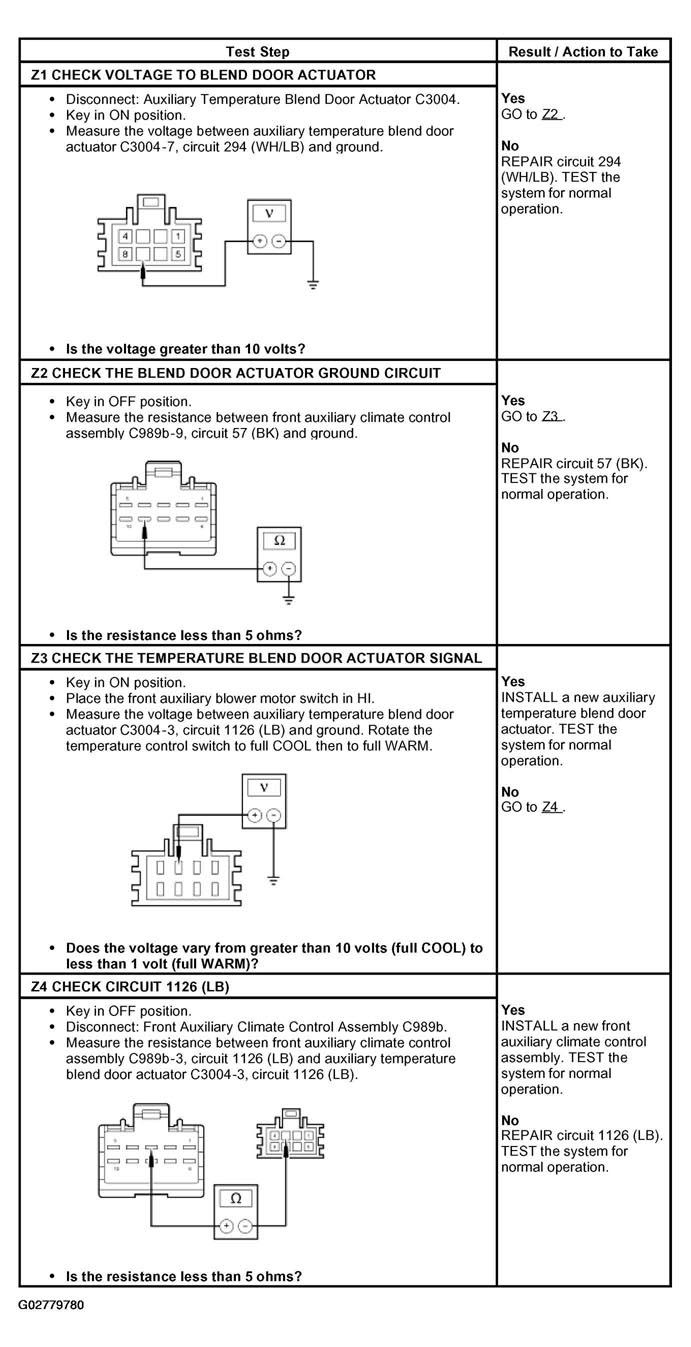

Fig 1: Pinpoint Test Z: Temperature Control Is Inoperative Using Front Auxiliary Climate Controls
G02779780Courtesy of FORD MOTOR CO.
