Pinpoint Test E: DTC: C1155-Left Front Wheel Speed Sensor
WARNING: This page is about a different car, the 2002 Lincoln Navigator and 2002 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

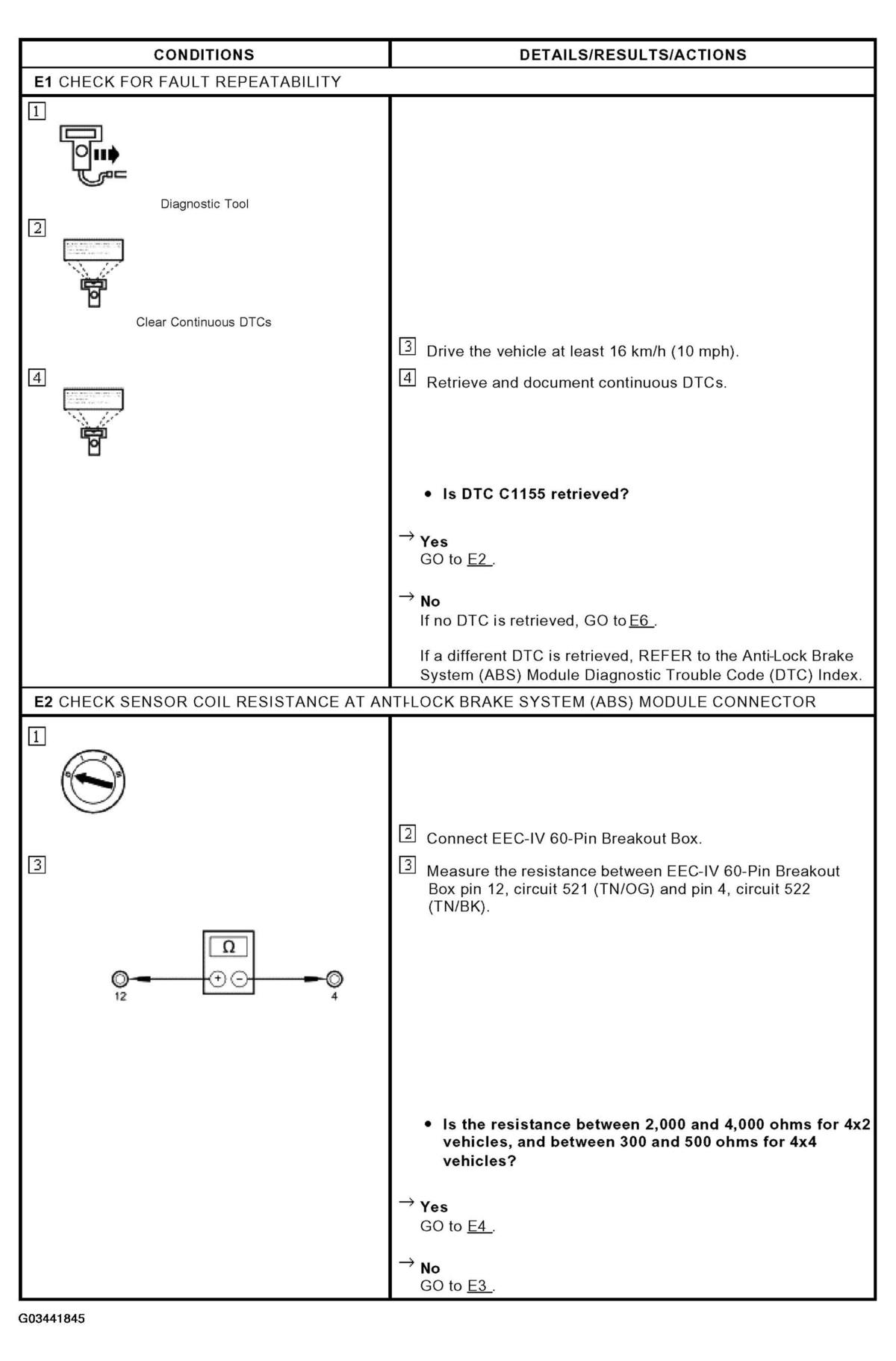

Fig 1: Pinpoint Test E: DTC: C1155-Left Front Wheel Speed Sensor (Steps E1 - E2)
Courtesy of FORD MOTOR CO.

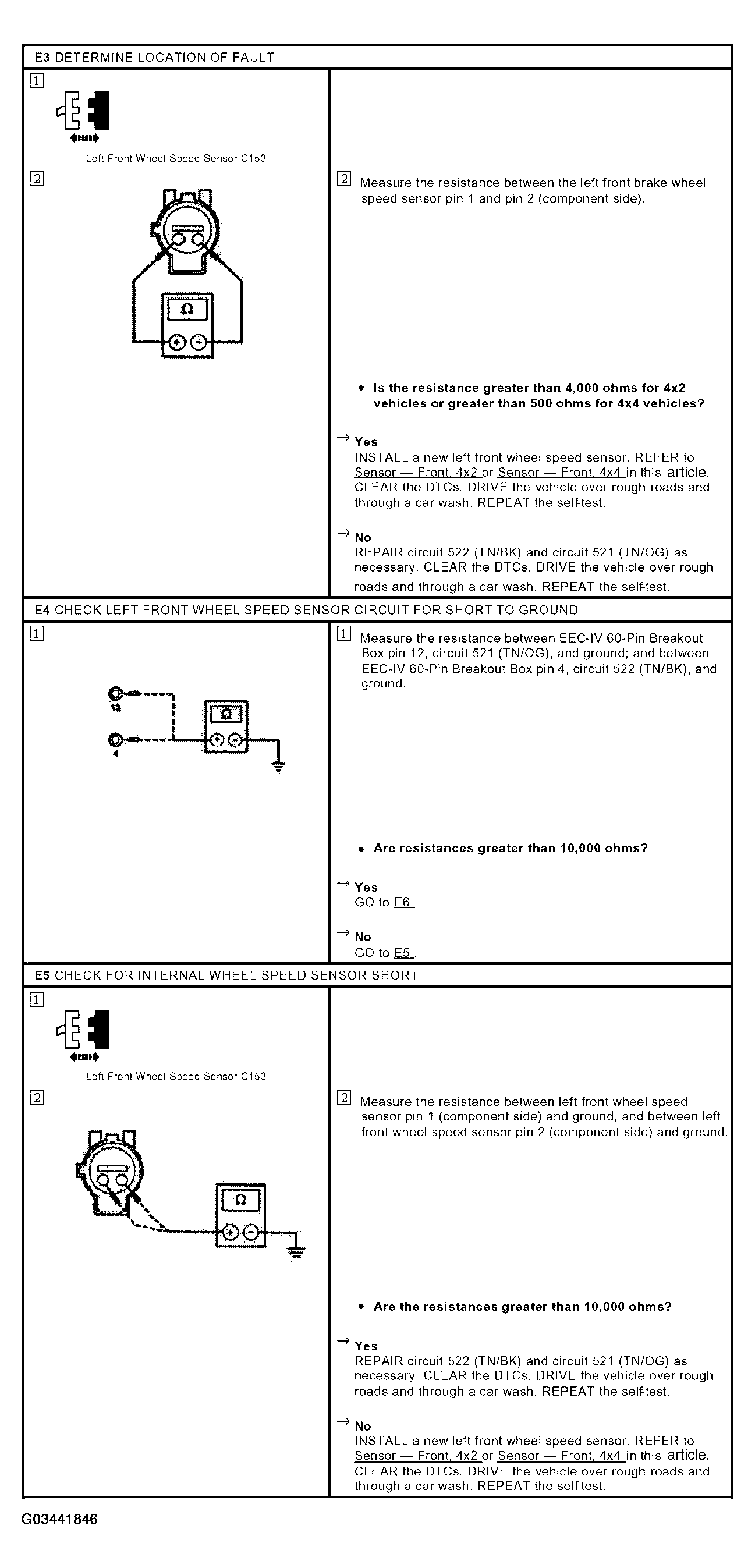

Fig 2: Pinpoint Test E: DTC: C1155-Left Front Wheel Speed Sensor (Steps E3 - E5)
Courtesy of FORD MOTOR CO.

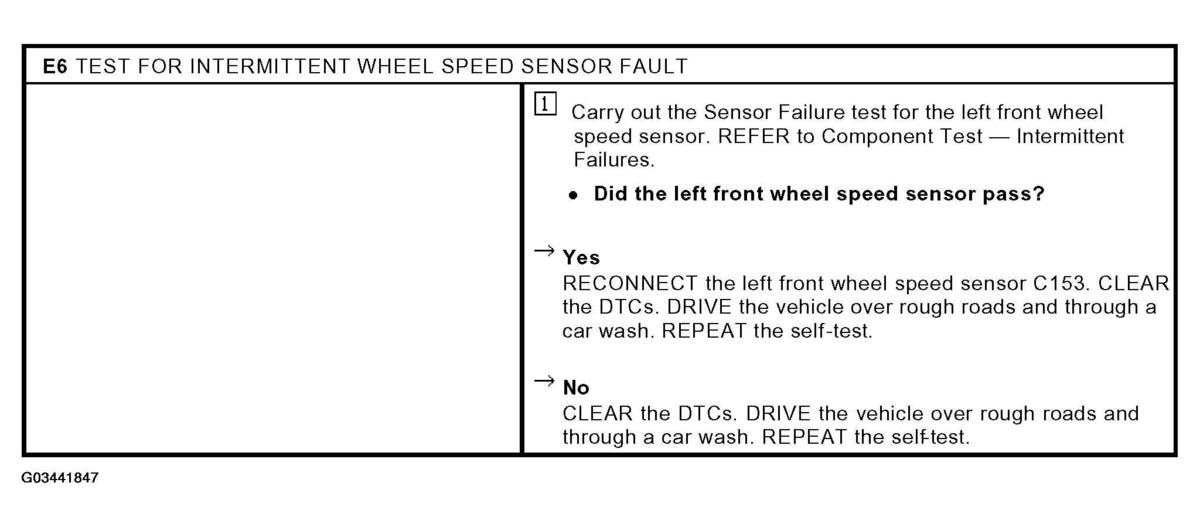

Fig 3: Pinpoint Test E: DTC: C1155-Left Front Wheel Speed Sensor (Step E6)
