Fluorescent Dye Injection - Using a Dye Injector Loop Kit

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before using the R-134a fluorescent dye injector for the first time, refer to the equipment manufacturers instructions on evacuation of non-condensable gasses from the hoses.

NOTE: Refrigerant system pressure should be between 413-551 kPa (60-80 psi) at 24°C.

Verify that the valves on the special tool are closed.

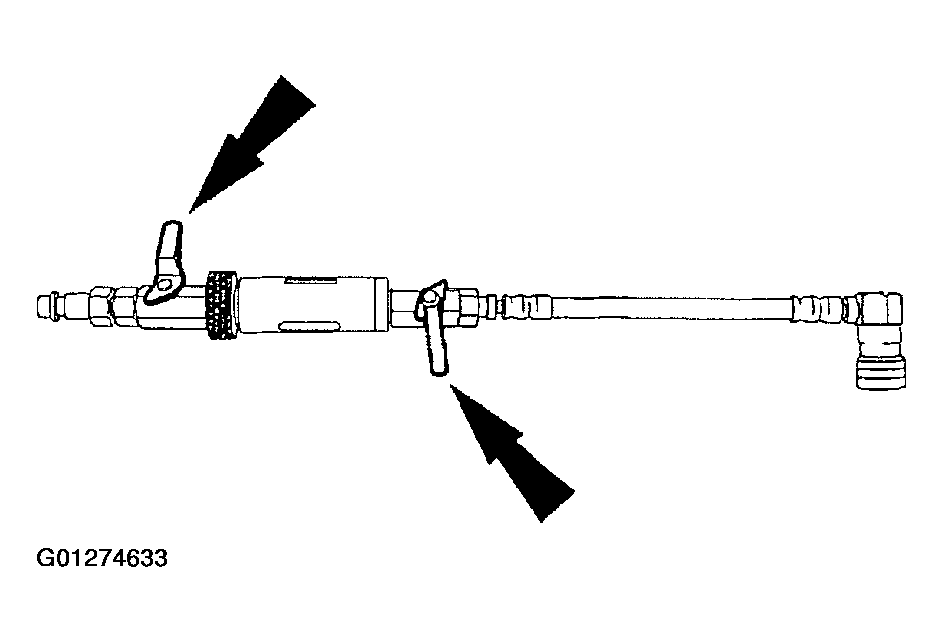

Fig 1: Verifying Valves Are Closed On Injector Loop
Courtesy of FORD MOTOR CO.
Fill the special tool reservoir with 7 ml (0.25 oz.) of fluorescent dye.

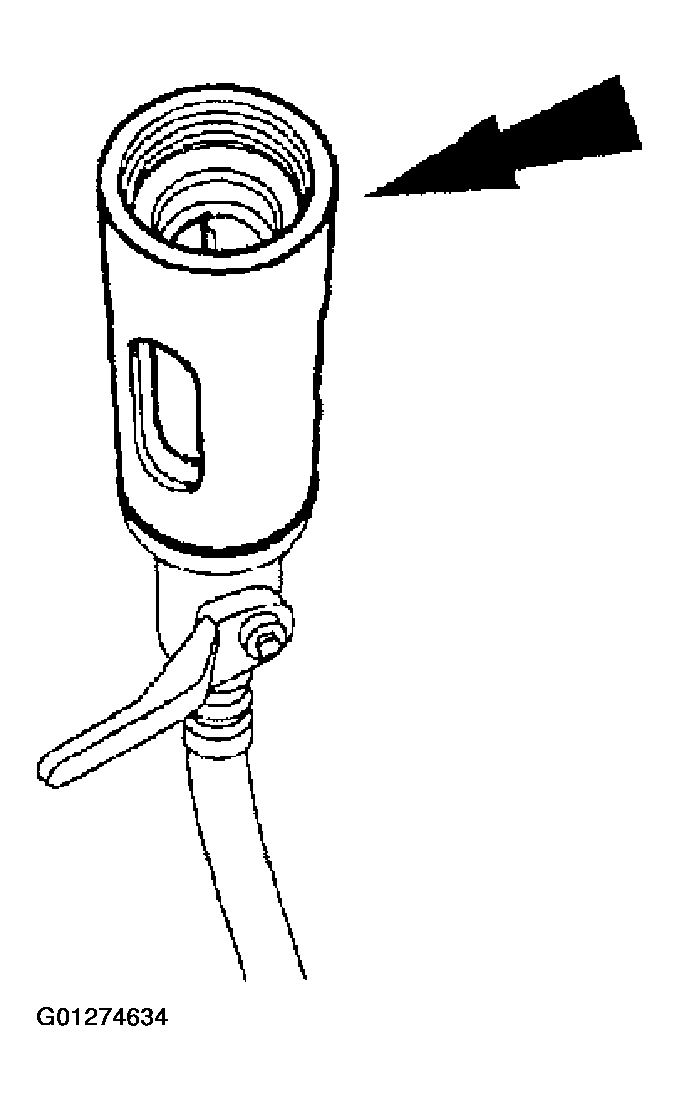

Fig 2: Filling Reservoir
Courtesy of FORD MOTOR CO.
Install the special tool between the high-pressure and low-pressure service gauge port valves.

CAUTION: Make sure all tools and hoses are clear of the engine cooling fan and drive belt before starting the engine.

Start the engine.
Open the high-pressure service valve.

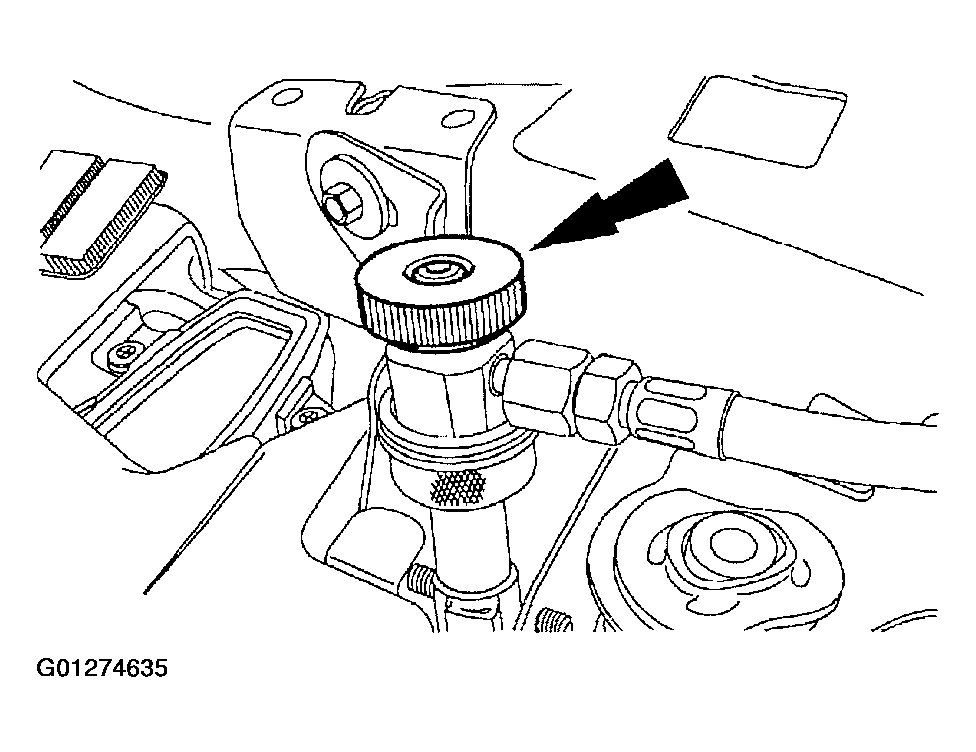

Fig 3: Opening High-Pressure Service Valve
Courtesy of FORD MOTOR CO.
Open the special tool valves and inject the fluorescent dye into the refrigerant system.

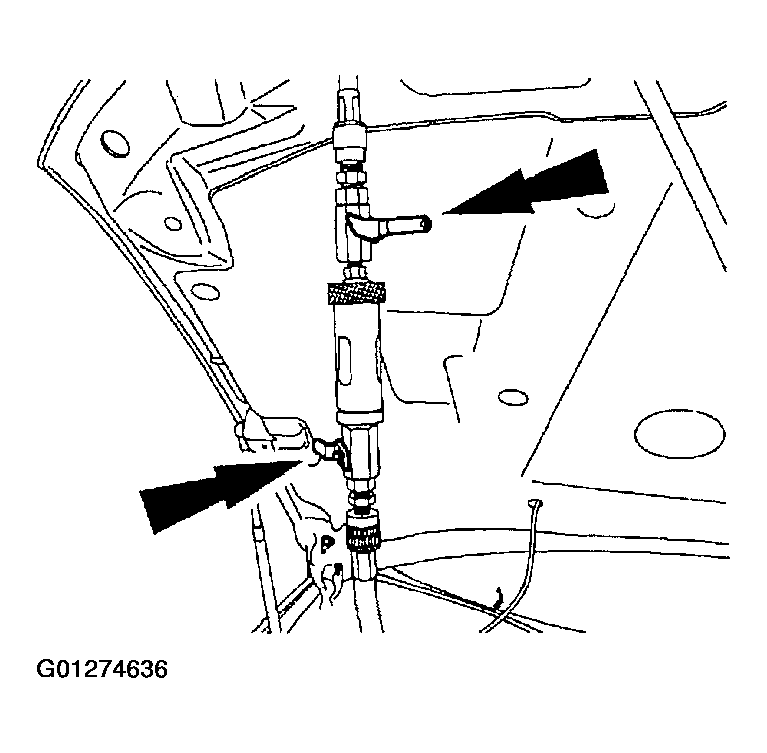

Fig 4: Opening Valves On Injector Tool
Courtesy of FORD MOTOR CO.
Close the high-pressure service valve to allow the pressure inside the special tool to equalize with the suction side of the refrigerant system.

Fig 5: Closing High-Pressure Service Tool
Courtesy of FORD MOTOR CO.

NOTE: Close the valves on the special tool while the A/C compressor is operating.

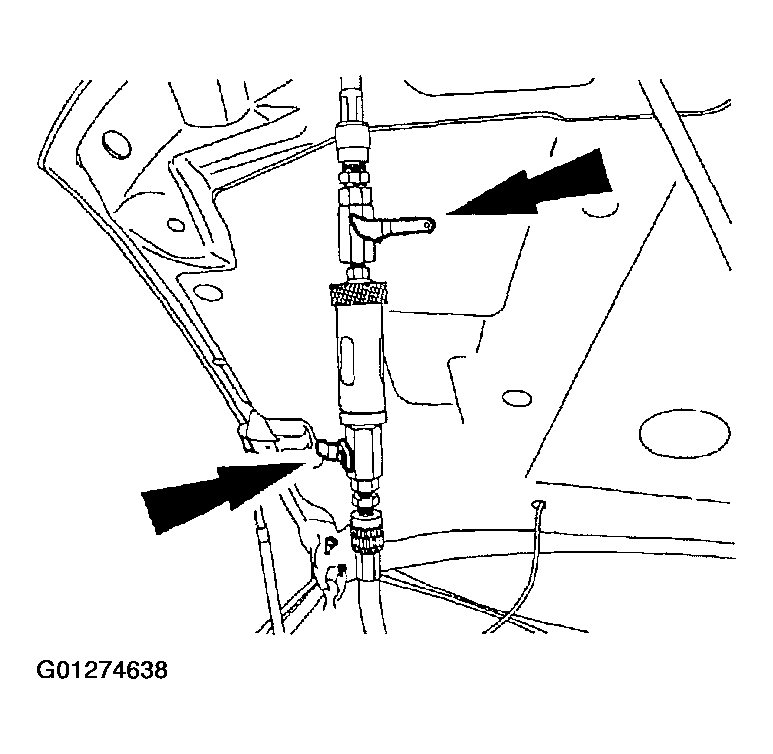

Fig 6: Closing Valves On Injector Tool

Courtesy of FORD MOTOR CO.

Close the valves on the special tool.

NOTE: Leave all valves on the special tool closed when not in use.

Disconnect the high-pressure and low-pressure service valves and remove the special tool from the vehicle.
