Door Glass Run Assembly: Installation

1. Install the moulded sail corner of the run assembly into position where the A-pillar meets the door belt. See Fig 1 .
2. Insert the B-pillar moulded corner into the door frame at the top on the door.
3. Insert the run assembly along the top of the door frame.
4. Insert the remainder of the B-pillar run into the door frame at the rear of the door.
5. Install the remainder of the front portion of the run assembly into the front run assembly.

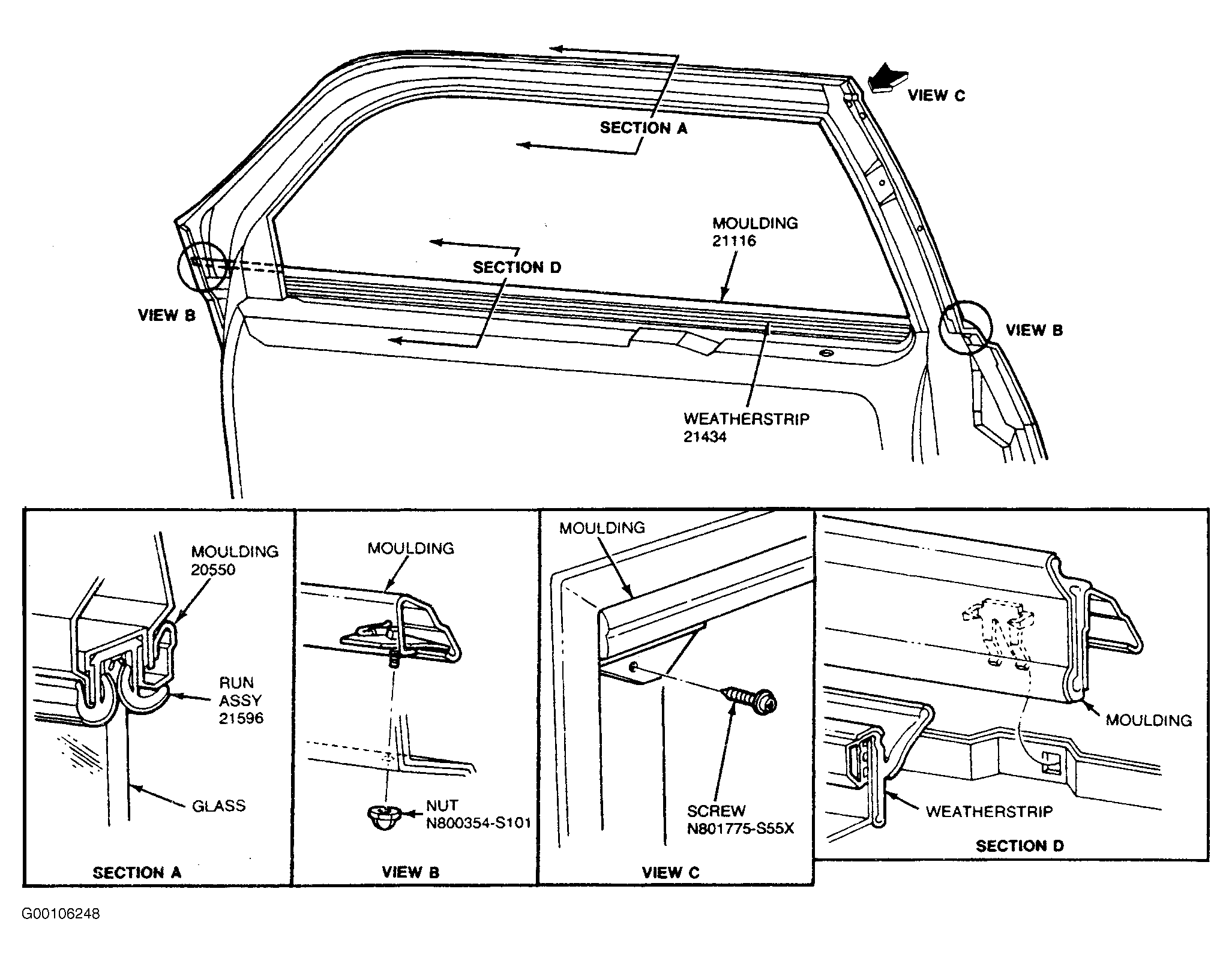

Fig 1: Installing Door Glass Run

Courtesy of FORD MOTOR CO.
