Power Supply Test

Ground lead on test lamp and check for voltage at temperature switch connector of instrument panel wiring (red-yellow wire). With ignition on, lamp should light. If lamp does not light, check wiring and ignition switch.

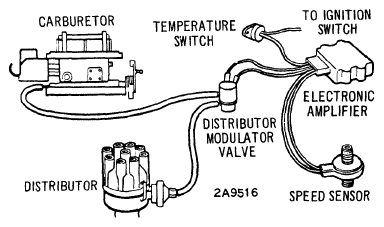

Fig 1: ELECTRONIC SPARK CONTROL SYSTEM (ESC)
G09352705Courtesy of FORD MOTOR CO.
