Removal [08/2023 - ]: Procedure
- REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE FRONT FLOOR COVER LH
- for HEV Model:
Refer to PROCEDURE - Step 4
- for PHEV Model:
Refer to PROCEDURE - Step 35
- for HEV Model:
- REMOVE ENGINE UNDER COVER HEAT INSULATOR (for PHEV Model)

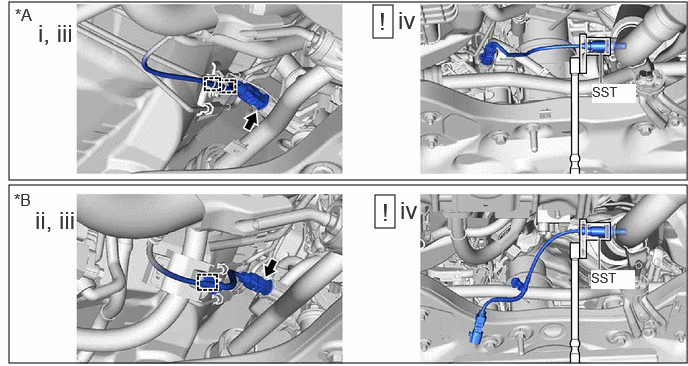

Refer to PROCEDURE - Step 14 - REMOVE AIR FUEL RATIO SENSOR
*A for HEV Model *B for PHEV Model - for HEV Model:
- Disengage the 2 wire harness clamps.
- for PHEV Model:
- Disengage the wire harness clamp.
- Disconnect the air fuel ratio sensor connector.
- Using SST, remove the air fuel ratio sensor from the front exhaust pipe assembly.
- SST: 09224-00012
NOTE:If the air fuel ratio sensor has been struck or dropped, replace it.
- for HEV Model:
