Installation [10/2022 - ]: Procedure

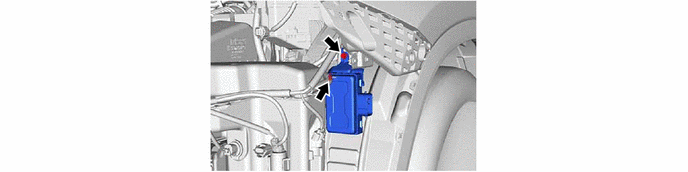

Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

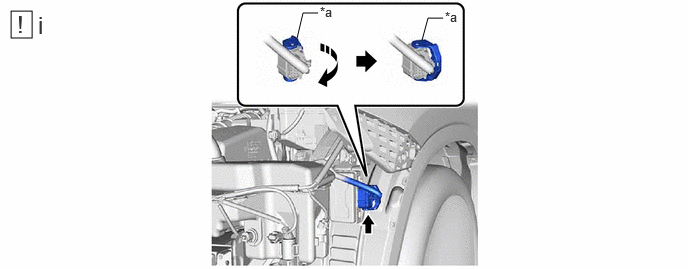

   *a

   Lock Lever

   -

   -

   1. Connect the eco run vehicle converter assembly connector and move the lock lever as shown in the illustration to lock it.

for Sport Package: Refer to INSTALLATION [10/2022 - ]

except Sport Package: Refer to INSTALLATION [10/2022 - ]

Refer to PROCEDURE - Step 5

Refer to WORK PROCEDURE [10/2022 - 08/2023] , or refer to WORK PROCEDURE [08/2023 - ]
