The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during throttle body with motor assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of throttle body with motor assembly Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2021 - ]

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [11/2021 - ]

COMPONENTS (REMOVAL)

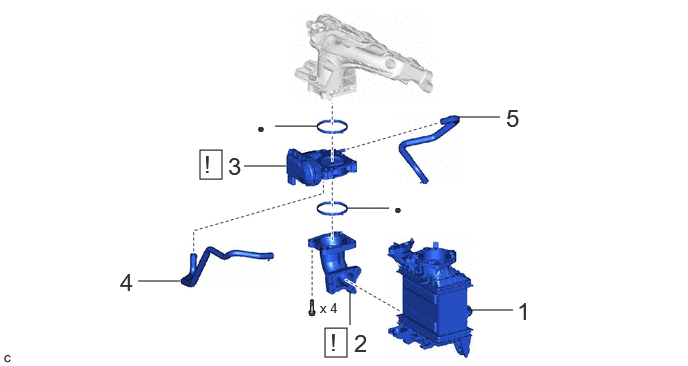

Fig 1: Throttle Body Removal Components

Callout - Procedure		Part Name Code
1	INTERCOOLER ASSEMBLY	17940D	-	-	-
2	NO. 2 AIR TUBE	17362B	See step 2	-	-
3	THROTTLE BODY WITH MOTOR ASSEMBLY	22030	See step 3	-	-
4	NO. 4 WATER BY-PASS HOSE	16281	-	-	-
5	NO. 5 WATER BY-PASS HOSE	16282	-	-	-

•

Non-reusable part
