Caution / Notice / Hint
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]
COMPONENTS (INSTALLATION)

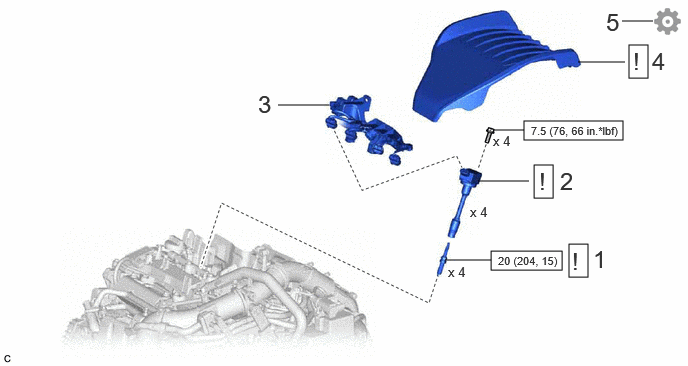

Fig 1: Ignition Coil And Spark Plug Installation Components With Torque Specifications [11/2021 - 03/2023]
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | SPARK PLUG | 19100P | See step 1 | - | - |
| 2 | IGNITION COIL ASSEMBLY | 19500 | See step 2 | - | - |
| 3 | ENGINE WIRE | 82121 | - | - | - |
| 4 | NO. 1 ENGINE COVER SUB-ASSEMBLY | 12601B | See step 4 | - | - |
| 5 | PERFORM INITIALIZATION | - | - | - | See step 5 |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
