This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

COMPONENTS (REMOVAL)

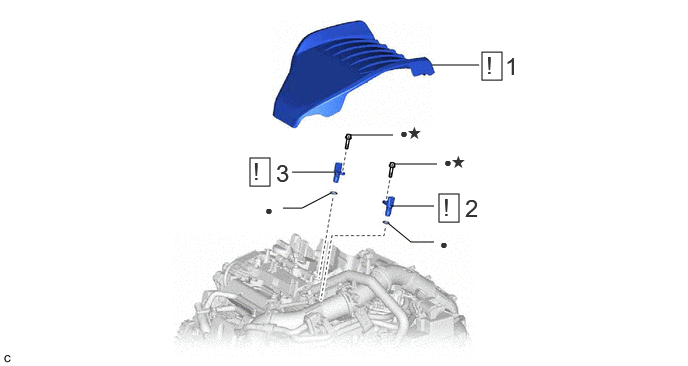

Fig 1: Camshaft Position Sensor Removal Components [11/2021 - 03/2023]

Callout - Procedure		Part Name Code
1	NO. 1 ENGINE COVER SUB-ASSEMBLY	12601B	See step 1	-	-
2	CAMSHAFT POSITION SENSOR (for Intake Side)	11102A	See step 2	-	-
3	CAMSHAFT POSITION SENSOR (for Exhaust Side)	11102A	See step 3	-	-

•

Non-reusable part

Precoated part
