Caution / Notice / Hint
NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

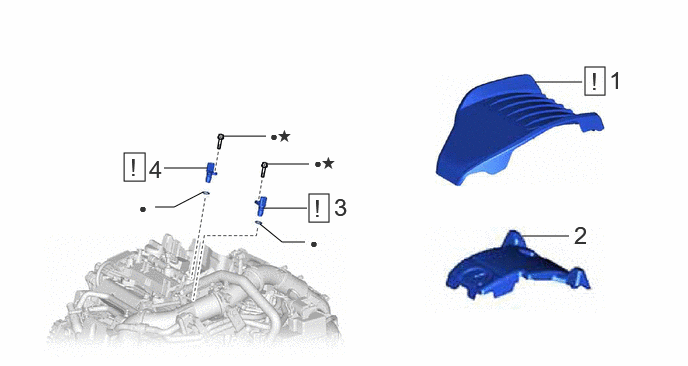

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | 12601B | See step 1 | - | - |
| 2 | NO. 3 ENGINE COVER | 12613 | - | - | - |
| 3 | CAMSHAFT POSITION SENSOR (for Intake Side) | 11102A | See step 3 | - | - |
| 4 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | 11102A | See step 4 | - | - |
| • | Non-reusable part | * | Precoated part |
