Caution / Notice / Hint
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

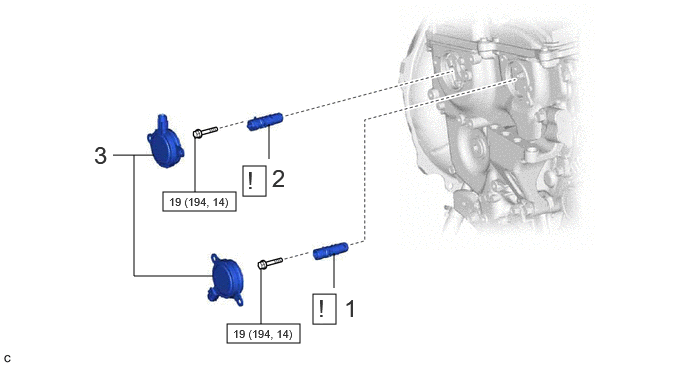

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | INTAKE CAMSHAFT TIMING GEAR BOLT ASSEMBLY | 135A0 | See step 1 | - | - |
| 2 | EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY | 135A0A | See step 2 | - | - |
| 3 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | 15370 | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
