Removal [09/2023 - ]: Procedure

  1. READ NUMBER OF STARTER OPERATIONS

    Refer to REGISTRATION [09/2023 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE ECU INTEGRATION BOX LH

    Refer to REMOVAL [09/2023 - ]

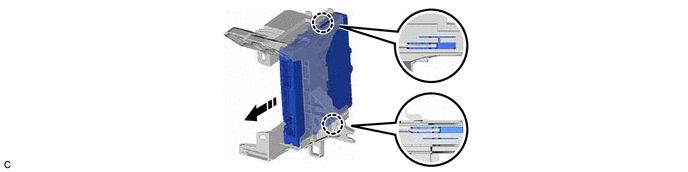

  4. REMOVE ENGINE STOP AND START ECU
    1. GTY1200935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
