Removal [09/2023 - ]: Procedure

  1. REMOVE AIR CLEANER CAP WITH NO. 1 AIR CLEANER HOSE

    Refer to PROCEDURE - Step 11

  2. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 11

  3. DISCONNECT VACUUM HOSE

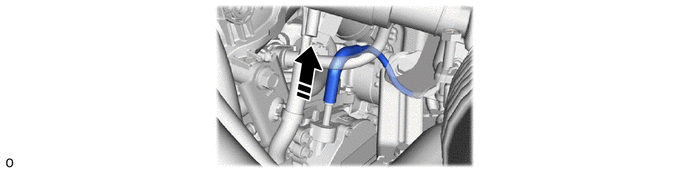

    1. GTY1126590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VACUUM PUMP ASSEMBLY

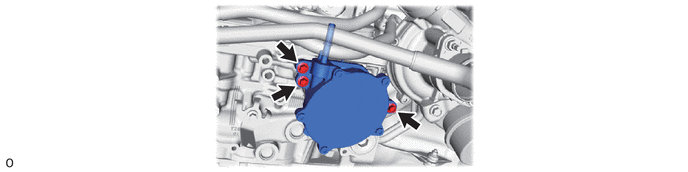

    1. GTY1126591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 VACUUM PUMP O-RING
    1. GTY1063891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
