Removal [09/2023 - ]: Procedure

  1. DISCONNECT INTERCOOLER RESERVE TANK ASSEMBLY

    Refer to PROCEDURE - Step 77

  2. DISCONNECT WIRE HARNESS

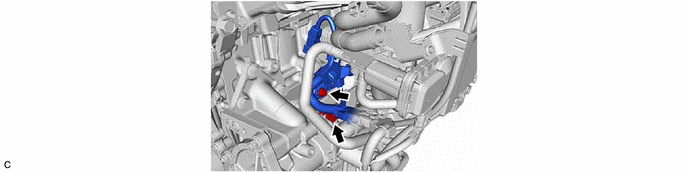

    1. GTY1133041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.

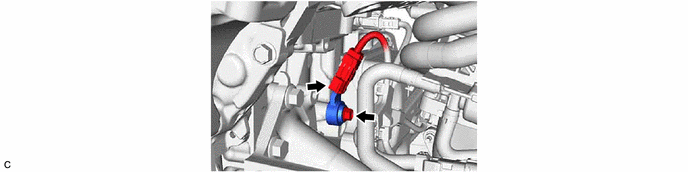

    1. GTY1133042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
