Removal [09/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 8

  4. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 9

  5. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  6. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11

  7. REMOVE SUSPENSION TOWER DAMPER (w/ Suspension Tower Damper)
    Refer to PROCEDURE - Step 4 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 4 [12/2023 - ]
  8. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 4

  9. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 5

  10. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  11. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  4

  12. REMOVE AIR CLEANER ASSEMBLY

    See step  5

  13. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

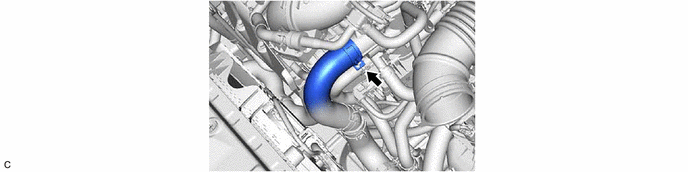

  14. DISCONNECT NO. 1 RADIATOR HOSE
    1. GTY1194903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

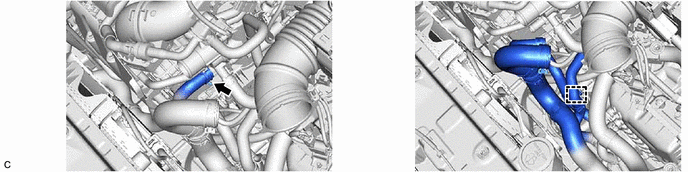

  15. DISCONNECT WATER BY-PASS HOSE ASSEMBLY
    1. GTY1199999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

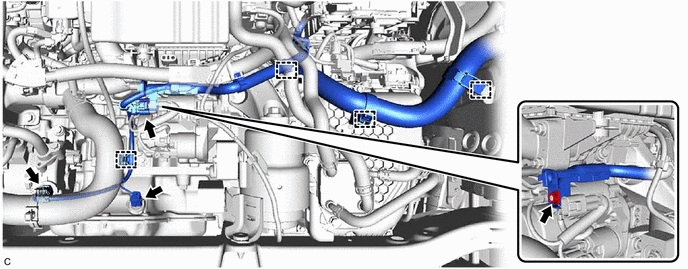

  16. DISCONNECT WIRE HARNESS
    1. GTY1133101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

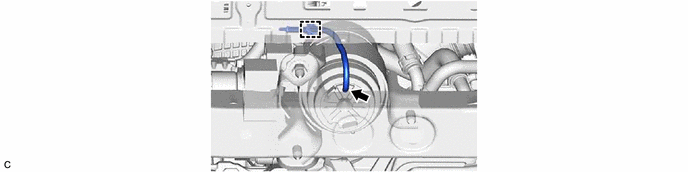

  17. DISCONNECT VACUUM HOSE
    1. GTY1129751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. GTY1076224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wooden Block Placement Location - -
      1. Support the engine assembly with transaxle using a jack and wooden block.
      2. Remove the 4 bolts and front engine mounting bracket.

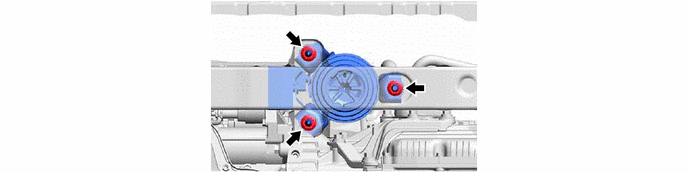

  19. REMOVE FRONT ENGINE MOUNTING INSULATOR

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1198653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
