Removal [10/2022 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (except Mexico Models)
    Refer to PROCEDURE - Step 22
  2. REMOVE VACUUM SENSOR ASSEMBLY (except Mexico Models)
    1. GTY1132006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT FUEL VAPOR FEED HOSE ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE

    Refer to PROCEDURE - Step 3

  5. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. REMOVE PURGE PRESSURE SENSOR (VACUUM SENSOR ASSEMBLY)

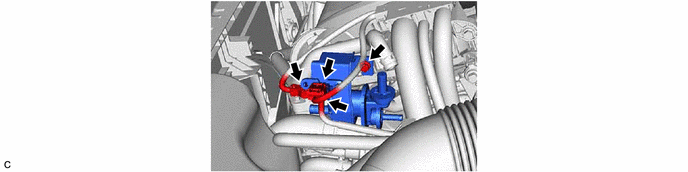

    1. GTY1203888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1133231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
