Removal [10/2022 - ]: Procedure

PRECAUTION

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 9
REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 10
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 11
REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 12
DRAIN COOLANT (for Intercooler)
Refer to PROCEDURE - Step 4
DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 4
REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1
REMOVE INLET AIR CLEANER ASSEMBLY
See step 4
REMOVE AIR CLEANER ASSEMBLY
See step 5
REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY
Refer to REMOVAL [10/2022 - ]

DISCONNECT NO. 1 RADIATOR HOSE

GTY1076154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT WATER BY-PASS HOSE ASSEMBLY

GTY1076156

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT WIRE HARNESS

GTY1133101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT VACUUM HOSE

GTY1129751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT ENGINE MOUNTING BRACKET

GTY1076224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wooden Block Placement Location

-

-

Support the engine assembly with transaxle using a jack and wooden block.
Remove the 4 bolts and front engine mounting bracket.

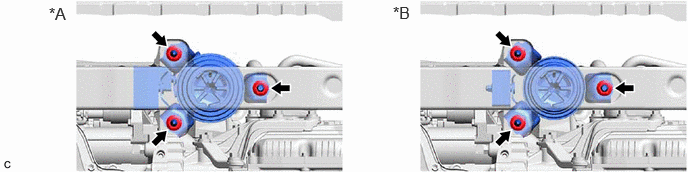

REMOVE FRONT ENGINE MOUNTING INSULATOR

GTY1130041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A

for 2WD

*B

for AWD
