Removal [10/2022 - 08/2023]: Procedure

  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FLOOR COVER LH
    Refer to PROCEDURE - Step 4
  3. REMOVE AIR FUEL RATIO SENSOR

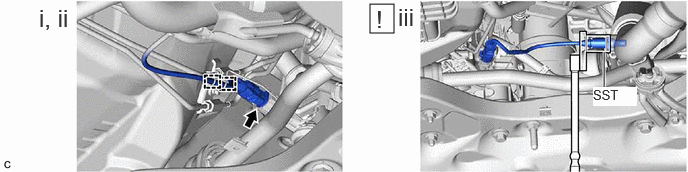

    1. GTY1129652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 wire harness clamps.
      2. Disconnect the air fuel ratio sensor connector.
      3. Using SST, remove the air fuel ratio sensor from the front exhaust pipe assembly.
        • SST: 09224-00012
        NOTE:

        If the air fuel ratio sensor has been struck or dropped, replace it.
