Removal [10/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
  2. REMOVE BATTERY

    Refer to REMOVAL [10/2022 - ]

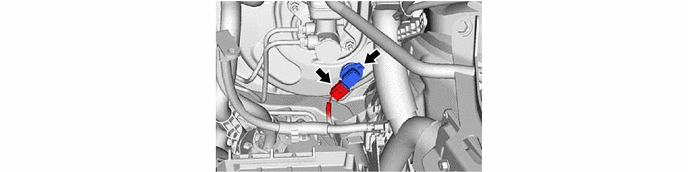

  3. REMOVE VACUUM SENSOR ASSEMBLY
    1. GTY1133488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

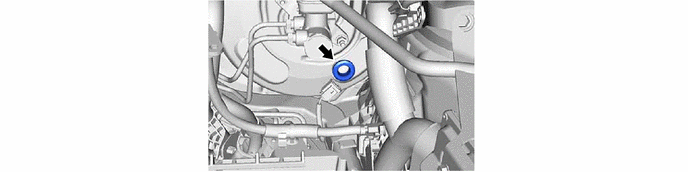

  4. REMOVE VACUUM SENSOR GROMMET
    1. GTY1133487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
