Caution / Notice / Hint

COMPONENTS (INSTALLATION)

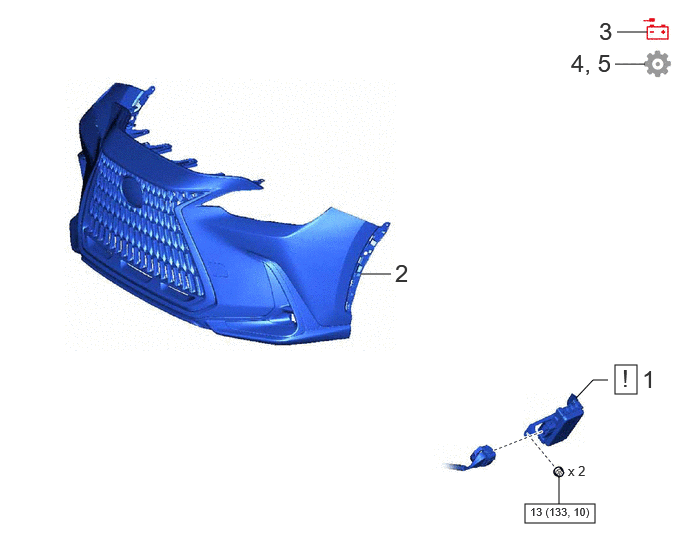

Fig 1: Backup Boost Converter Installation Components With Torque Specifications
GTY1079087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 ECO RUN VEHICLE CONVERTER ASSEMBLY G92C0A See step  1 - -
2 FRONT BUMPER ASSEMBLY - - - -
3 NEGATIVE BATTERY TERMINAL - - - -
4 PERFORM INITIALIZATION - - -
