Caution / Notice / Hint

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [12/2021 - ]



COMPONENTS (REMOVAL)

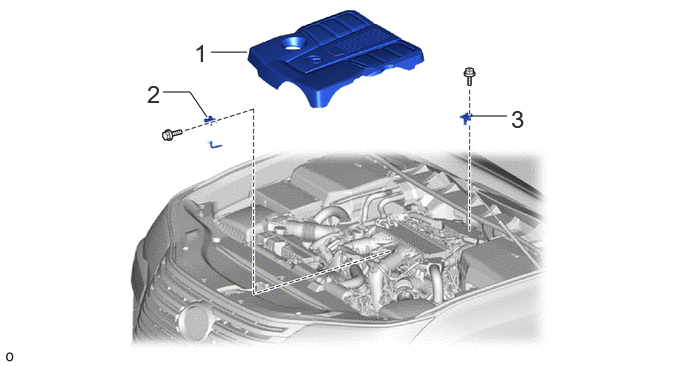

Fig 1: Manifold Absolute Pressure Sensor Removal Components
GTY1081322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 V-BANK COVER SUB-ASSEMBLY 11209 - - -
2 NO. 2 TURBO PRESSURE SENSOR 89421L - - -
3 NO. 3 TURBO PRESSURE SENSOR 89421Q - - -
