Caution / Notice / Hint

COMPONENTS (REMOVAL)

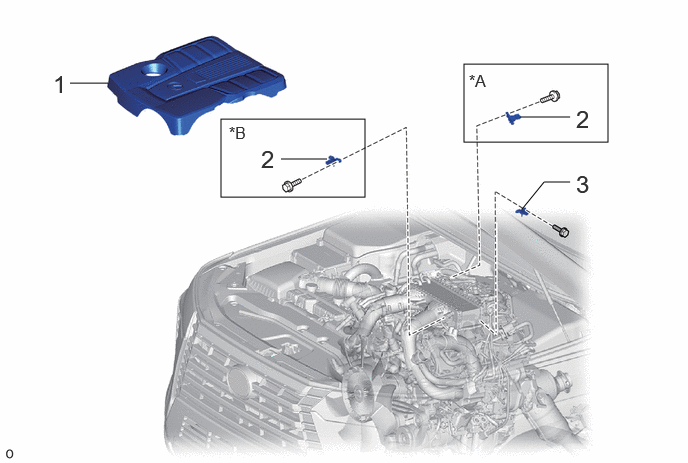

Fig 1: Vacuum Sensor Removal Components
GTY1211743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 V-BANK COVER SUB-ASSEMBLY 11209 - - -
2 NO. 1 TURBO PRESSURE SENSOR ASSEMBLY 89421 - - -
3 VACUUM SENSOR ASSEMBLY 89420 - - -
*A Bank 1 *B Bank 2
