Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during E.F.I. engine coolant temperature sensor removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
Inspection after repair |
|
Refer to INITIALIZATION [12/2023 - ] |

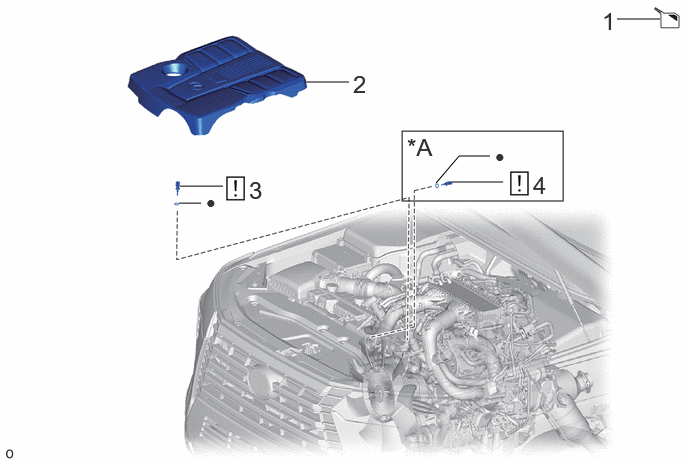

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | DRAIN ENGINE COOLANT | - | - | See step 1 | - |
| 2 | V-BANK COVER SUB-ASSEMBLY | 11209 | - | - | - |
| 3 | E.F.I. ENGINE COOLANT TEMPERATURE SENSOR | 89422 | See step 3 | - | - |
| 4 | ENGINE COOLANT TEMPERATURE SENSOR (w/ Grille Shutter) | 89422N | See step 4 | - | - |
| *A | w/ Grille Shutter | - | - |
| • | Non-reusable part | - | - |
