On-Vehicle Inspection [10/2022 - ]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    HINT:

    Refer to PROCEDURE - Step 9

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    HINT:

    Refer to PROCEDURE - Step 10

  3. REMOVE NO. 1 ENGINE UNDER COVER

    HINT:

    Refer to PROCEDURE - Step 11

  4. INSPECT FRONT ENGINE MOUNTING INSULATOR

    Pre-procedure1

    • Disconnect the vacuum hose from the front engine mounting insulator.

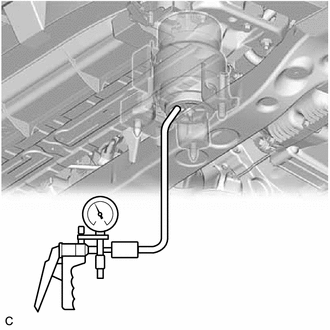

    • Using a vacuum pump, apply vacuum of 80 kPa (600 mmHg, 23.6 in.Hg) and wait for 1 minute.
      GTY1129750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Check that there is no change in the needle movement of the vacuum pump gauge.

      OK

      Vacuum pressure holds.

    • Check that there is no fluid leakage caused by a break in the diaphragm.

    Post-procedure1

    • Connect the vacuum hose to the front engine mounting insulator.
  5. INSTALL NO. 1 ENGINE UNDER COVER

    HINT:

    Refer to PROCEDURE - Step 85

  6. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
  7. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
