Caution / Notice / Hint

COMPONENTS (REMOVAL)

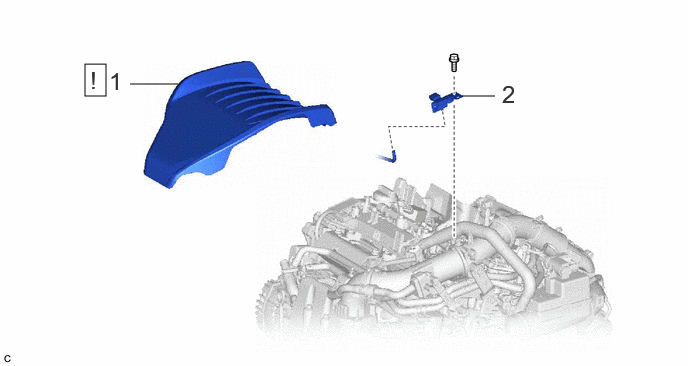

Fig 1: Vacuum Sensor Removal Components
GTY1077483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 NO. 1 ENGINE COVER SUB-ASSEMBLY 12601B See step  1 - -
2 VACUUM SENSOR ASSEMBLY 89420 - - -
