Removal [11/2021 - ]: Procedure

  1. REMOVE RADIATOR UPPER AIR GUIDE PLATE

    Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

  2. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  4

  3. REMOVE AIR CLEANER ASSEMBLY

    See step  5

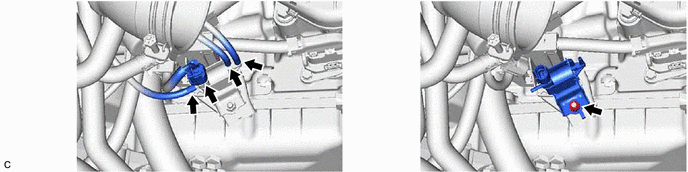

  4. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for Active Control Engine Mount System)
    1. GTY1076169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
