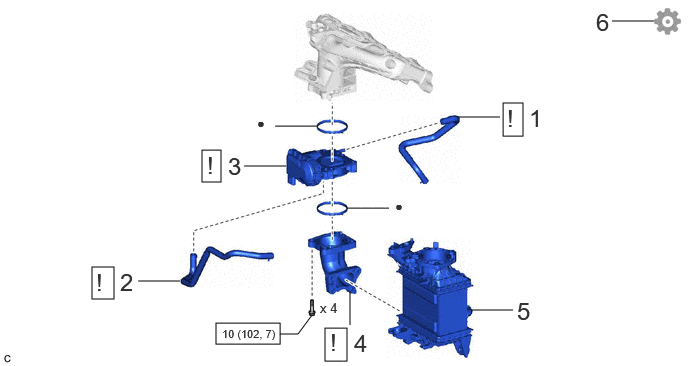

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 5 WATER BY-PASS HOSE | 16282 | See step 1 | - | - |
| 2 | NO. 4 WATER BY-PASS HOSE | 16281 | See step 2 | - | - |
| 3 | THROTTLE BODY WITH MOTOR ASSEMBLY | 22030 | See step 3 | - | - |
| 4 | NO. 2 AIR TUBE | 17362B | See step 4 | - | - |
| 5 | INTERCOOLER ASSEMBLY | 17940D | - | - | - |
| 6 | PERFORM INITIALIZATION | - | - | - | See step 6 |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
