Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during intake mass air flow meter sub-assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Mass air flow meter sub-assembly | Inspection after repair |
|
w/ Canister Pump Module: Refer to INITIALIZATION [12/2021 - ] w/o Canister Pump Module: Refer to INITIALIZATION [12/2021 - ] |

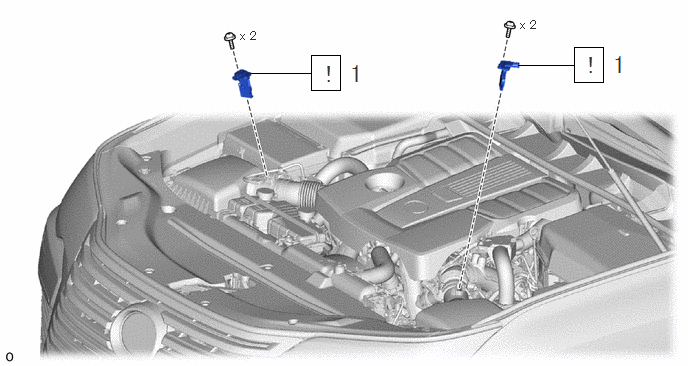

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | INTAKE MASS AIR FLOW METER SUB-ASSEMBLY | 22204 | See step 1 | - | - |
