Components [11/2021 - ]

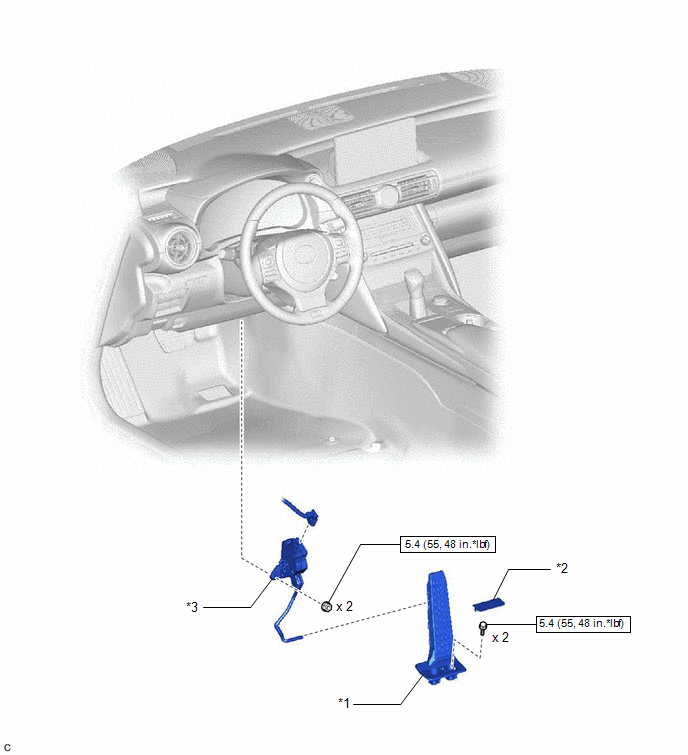

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
GTY1084107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ACCELERATOR PEDAL ASSEMBLY *2 ACCELERATOR PEDAL PAD
*3 ACCELERATOR PEDAL SENSOR ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
