Inspection [12/2021 - ]: Procedure

  1. INSPECT FRONT SEAT CUSHION PAD RH
    1. w/o Folding Headrest:

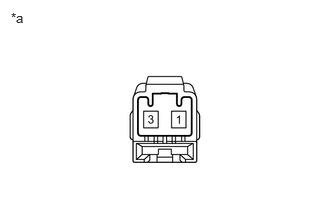

      1. GTY1080783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Front Seat Cushion Pad RH (Occupant Detection Sensor))

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 - 3 Front passenger seat occupied Below 100 Ω
        1 - 3 Front passenger seat not occupied 1 MΩ or higher

        If the result is not as specified, replace the separate type front seat cushion pad RH (occupant detection sensor).

    2. w/ Folding Headrest:

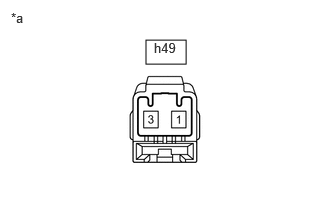

      1. GTY1080763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Front Seat Cushion Pad RH (Occupant Detection Sensor))

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        h49-1 - h49-3 Front passenger seat occupied Below 100 Ω
        h49-1 - h49-3 Front passenger seat not occupied 1 MΩ or higher

        If the result is not as specified, replace the separate type front seat cushion pad RH (occupant detection sensor).
