Parts Location [12/2021 - ]: Illustration

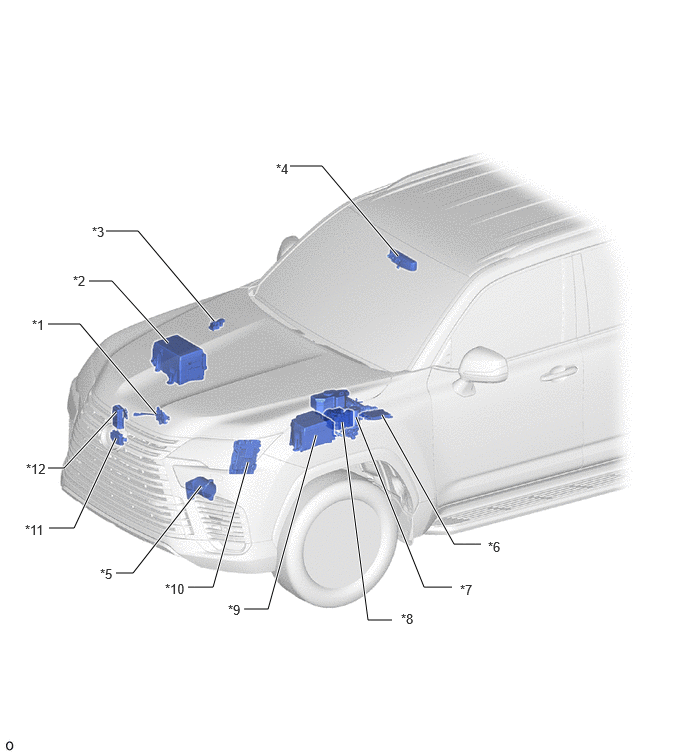

| *1 | ENGINE HOOD COURTESY SWITCH | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - IGP NO. 1 relay |
| *3 | BATTERY STATE SENSOR ASSEMBLY | *4 | INNER REAR VIEW MIRROR ASSEMBLY |
| *5 | POWER STEERING ECU WITH MOTOR ASSEMBLY | *6 | TCM |
| *7 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - NO. 1 SKID CONTROL ECU |
*8 | BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU |
| *9 | NO. 2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI MAIN NO. 1 RELAY - EFI MAIN NO. 2 RELAY - ST NO. 1 RELAY - ST NO. 2 RELAY |
*10 | ECM |
| *11 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *12 | ECO RUN VEHICLE CONVERTER ASSEMBLY |

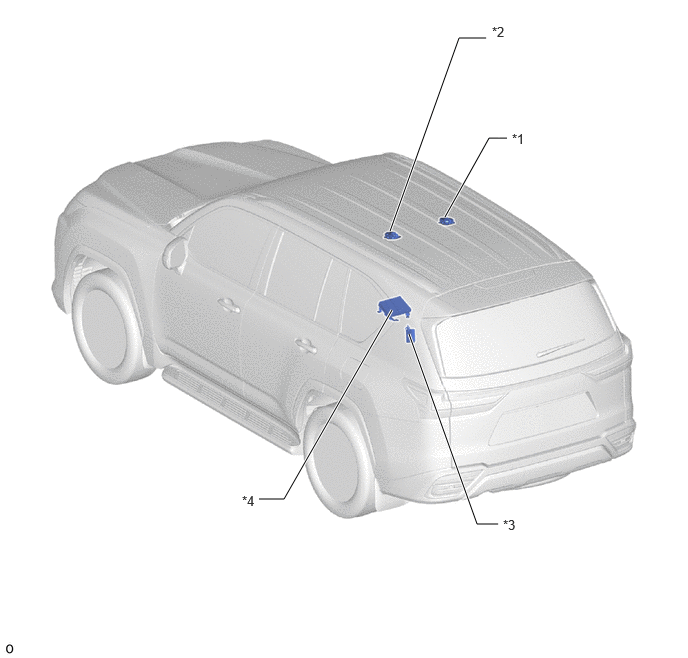

| *1 | SPOT LIGHT ASSEMBLY RH | *2 | SPOT LIGHT ASSEMBLY LH |
| *3 | TIRE PRESSURE WARNING ECU AND RECEIVER | *4 | COOLER CONTROL SWITCH ASSEMBLY |

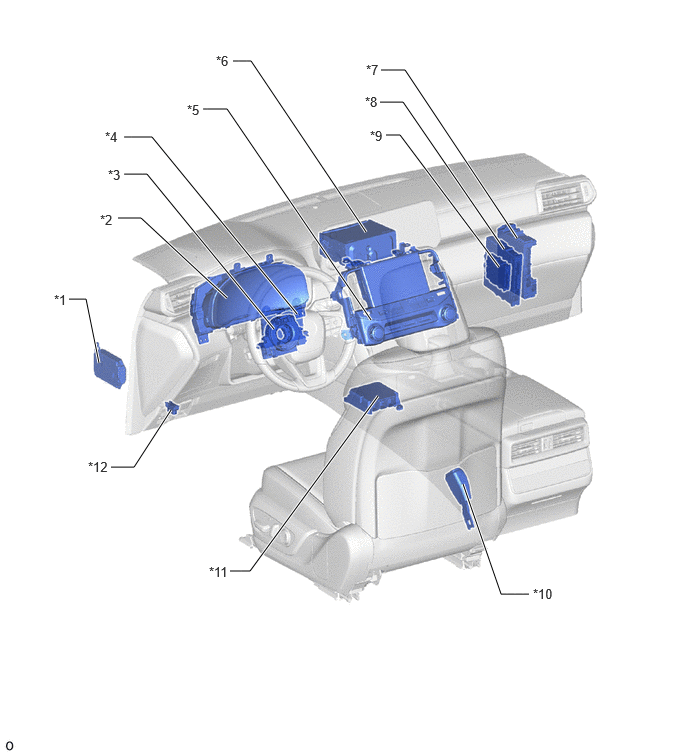

| *1 | 4 WHEEL DRIVE CONTROL ECU | *2 | COMBINATION METER ASSEMBLY |
| *3 | SPIRAL CABLE ASSEMBLY -STEERING SENSOR |
*4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | INTEGRATION CONTROL AND PANEL ASSEMBLY | *6 | MULTI-MEDIA MODULE RECEIVER ASSEMBLY |
| *7 | POWER DISTRIBUTION BOX ASSEMBLY | *8 | ENGINE STOP AND START ECU |
| *9 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *10 | FRONT SEAT INNER BELT ASSEMBLY |
| *11 | AIRBAG ECU | *12 | DLC3 |

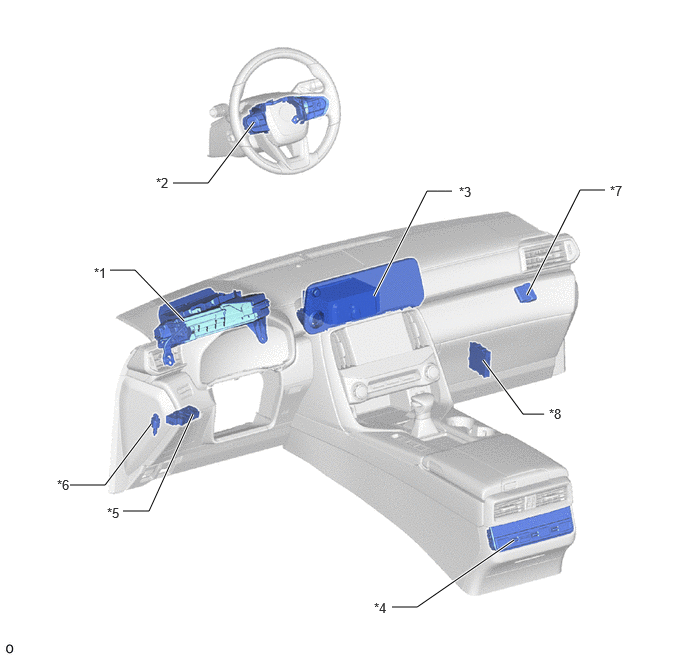

| *1 | METER MIRROR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY |
| *5 | STOP AND START SYSTEM CANCEL SWITCH | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | CLEARANCE WARNING ECU ASSEMBLY | *8 | ROOM LIGHT CONTROL RELAY |
