Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the throttle with throttle position sensor body assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replacement Part	Necessary Procedure	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Throttle with throttle position sensor body assembly Cleaning the deposits from the throttle with throttle position sensor body assembly	Inspection after repair	Poor idle, etc. Engine start function, etc.	w/ Canister Pump Module: Refer to INITIALIZATION [12/2021 - ] w/o Canister Pump Module: Refer to INITIALIZATION [12/2021 - ]

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [12/2021 - ]

COMPONENTS (REMOVAL)

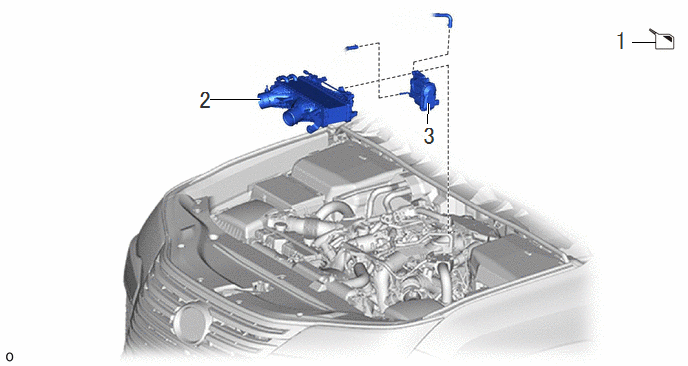

Fig 1: Throttle Body Removal Components

Procedure		Part Name Code
1	DRAIN ENGINE COOLANT	-	-	See step 1	-
2	INTERCOOLER ASSEMBLY	17940D	-	-	-
3	THROTTLE WITH THROTTLE POSITION SENSOR BODY ASSEMBLY	22030	-	-	-
