The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ignition coil and spark plug removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
Inspection after repair |
|
w/ Canister Pump Module: Refer to INITIALIZATION [12/2021 - ] w/o Canister Pump Module: Refer to INITIALIZATION [12/2021 - ] |
NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [12/2021 - ]

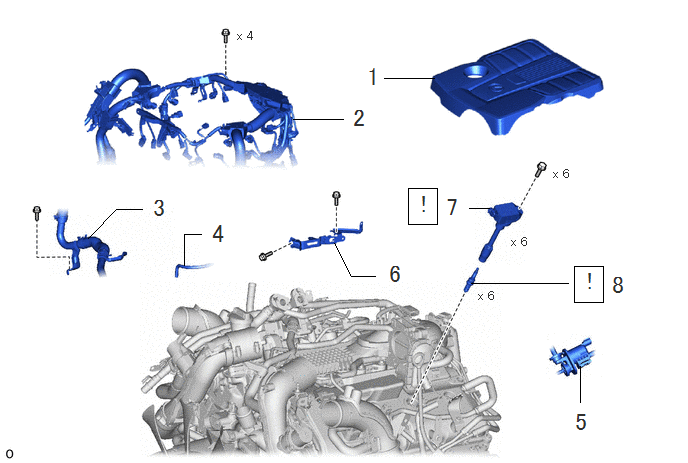

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | V-BANK COVER SUB-ASSEMBLY | 11209 | - | - | - |
| 2 | ENGINE WIRE | 82121 | - | - | - |
| 3 | NO. 4 WATER BY-PASS PIPE | 16288 | - | - | - |
| 4 | NO. 1 VENTILATION PRESSURE SENSOR HOSE | 12266B | - | - | - |
| 5 | PURGE VSV (DUTY VACUUM SWITCHING VALVE) | 17650G | - | - | - |
| 6 | BRACKET | - | - | - | - |
| 7 | IGNITION COIL ASSEMBLY | 19500 | See step 7 | - | - |
| 8 | SPARK PLUG | 19100P | See step 8 | - | - |
